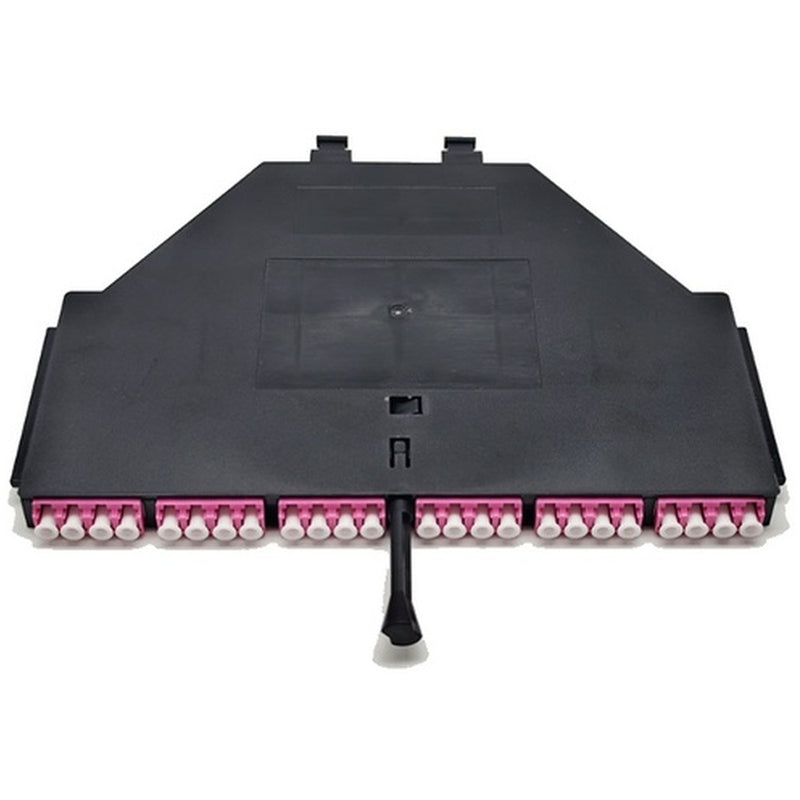

CDSM 24F MPO-cassette OS2 met 1× 24-vezel MPO male, MPO-naar-24 LC hydra-kabel, 6 quad LC-adapters en 1 MPO-adapter
SKU: TP-FEC-1078 | EAN: 14906694
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts CDSM 24F MPO-cassette OS2 met 1× 24-vezel MPO male, MPO-naar-24 LC hydra-kabel, 6 quad LC-adapters en 1 MPO-adapter
The CDSM 24F MPO cassette is designed for high-density fiber optic applications in data centers. The cassette enables the conversion of 24-fiber MPO/MTP trunk connections to simplex or duplex LC connections, allowing equipment, patch frames, or endpoints to be directly connected using standard patch cables.
The cassette is equipped with 1× OS2 24-fiber MPO male connectors with low insertion loss (≤0.35 dB) and is internally terminated with MPO-to-LC hydra cables. On the front side, the cassette features 6 quad duplex LC adapters, and on the rear side 1 MPO adapter.
Thanks to its compact design and high port density, this MPO cassette is ideally suited for MDA, IDA, and HDA environments within modern data center architectures.
Key Features
- 24 fibers (24F)
- OS2
- 1× 24-fiber MPO male connector
- Standard loss ≤ 0.7 dB
- MPO-to-LC hydra cable configuration
- 6× quad duplex LC adapters (front side)
- 1× MPO adapter (rear side)
- Made of high-quality engineered plastic
- Quick installation, flexibly configurable, and easy to manage
Application
- Data center cabling
- High-density MPO-to-LC breakout
- Direct connection to active equipment and patch frames
MTP/MPO Connector Specifications:
| Property | Singlemode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0.60 (standard)≤0.35 (elite) | ≤0.60 (standard)≤0.35 (elite) |
| Return loss (dB) | ≥60 | ≥20 |
| Durability | ≤0.2 dB (500 mating cycles) | ≤0.2 dB (500 mating cycles) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Property | Singlemode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0.30 | ≤0.30 |
| Return loss (dB) | ≥60 | ≥20 |
| Durability | ≤0.2 dB (500 mating cycles) | ≤0.2 dB (500 mating cycles) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Parameter | X-axis Min | X-axis Max | Y-axis Min | Y-axis Max |
|---|---|---|---|---|
| Bend radius (mm) | 500 | – | 50 | – |
| Polish angle | 0–0.2 | 0–0.2 | 8–0.2 | 8–0.2 |
| Fiber height (nm) | 1000 | 3000 | – | – |
| Maximum fiber height deviation (nm) | 600 | – | – | – |
| Adjacent fiber deviation (nm) | -300 | +300 | – | – |
| Average fiber height deviation (nm) | -300 | +300 | – | – |
