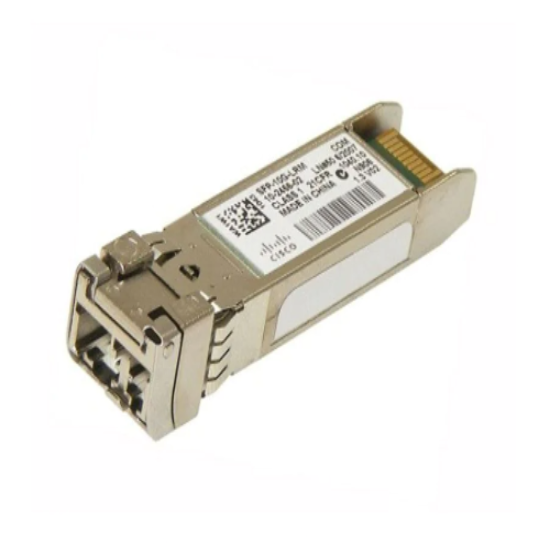

Cisco SFP-10G-LRM Transceiver Module - 10GBASE-LRM SFP+ 1310nm 220m MMF/300m SMF
SKU: JP-NET-1210 | MPN: SFP-10G-LRM | EAN: 67263046
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco SFP-10G-LRM Transceiver Module - 10GBASE-LRM SFP+ 1310nm 220m MMF/300m SMF
The Cisco SFP-10G-LRM transceiver supports 10GBASE-LRM data rates over both legacy multi mode fiber (MMF) and standard single mode fiber (SMF) using duplex LC connectors. It provides a reach of up to 220 m on FDDI-grade MMF and up to 300 m on SMF. The module complies with IEEE 802.3aq standards and features Electronic Dispersion Compensation (EDC) to ensure reliable performance over older fiber infrastructure.
Thanks to the hot swappable design and versatility, this transceiver is an ideal solution for upgrading existing campus networks and data centers without the need for extensive re-cabling. It provides real-time monitoring of operating parameters via the digital diagnostics interface.
SPECIFICATIONS:
| Form Factor | SFP+ |
| Maximum Data Rate | 10.3Gbps |
| Optical Components | 1310nm FP / VCSEL |
| Wavelength | 1310nm |
| Maximum Cable Distance | 220m @ MMF / 300m @ SMF |
| Interface | LC |
| Cable Type | MMF & SMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
Specifications
General Information
Connector & Interface
Performance
Electrical Specifications
Environment & Compliance
Compatibility & Coding
Certifications
Meets strict international safety and quality standards.
