Cisco GLC-SX-MM-RGD Rugged SFP - 1000BASE-SX 850nm Industrial MMF
SKU: JP-NET-1210 | MPN: GLC-SX-MM-RGD | EAN: 67263046
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco GLC-SX-MM-RGD Rugged SFP - 1000BASE-SX 850nm Industrial MMF

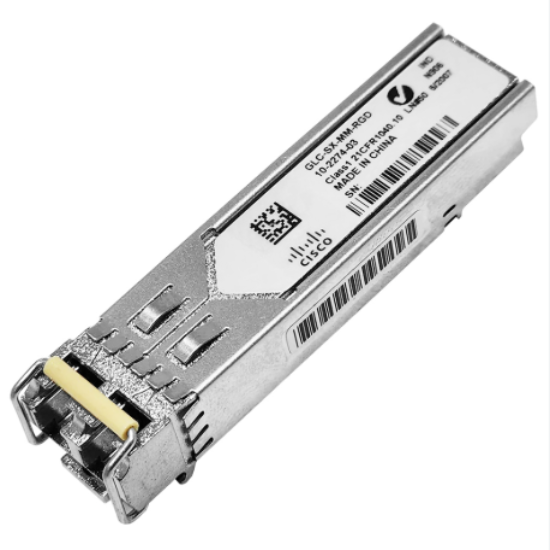

The Cisco GLC-SX-MM-RGD is a Rugged 1000BASE-SX SFP transceiver module designed for industrial and harsh environments. It operates over multimode fiber (MMF) at a wavelength of 850nm, supporting distances up to 550 meters. Unlike standard commercial modules, the "RGD" series is specifically built to withstand extreme temperature fluctuations and vibration, making it ideal for industrial Ethernet applications such as factory automation, intelligent transportation systems (ITS), and substation networks.
This hot-swappable module features a duplex LC interface and is engineered for high reliability in non-climate-controlled settings. It is fully compatible with Cisco's Industrial Ethernet (IE) switching platforms and other ruggedized networking hardware, ensuring stable Gigabit Ethernet connectivity where standard transceivers might fail.
SPECIFICATIONS:
| Form Factor | SFP |
| Maximum Data Rate | 1000Mbps (1Gbps) |
| Optical Components | 850nm VCSEL |
| Wavelength | 850nm |
| Maximum Cable Distance | 550m @ OM2 / 1km @ OM3 |
| Interface | LC Duplex |
| Cable Type | MMF (Multimode) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| DOM Support | No (Standard for RGD variant) |
Specifications
General Information
Connector & Interface
Performance
Electrical Specifications
Environment & Compliance
Compatibility & Coding
Certifications
Meets strict international safety and quality standards.
