Cisco

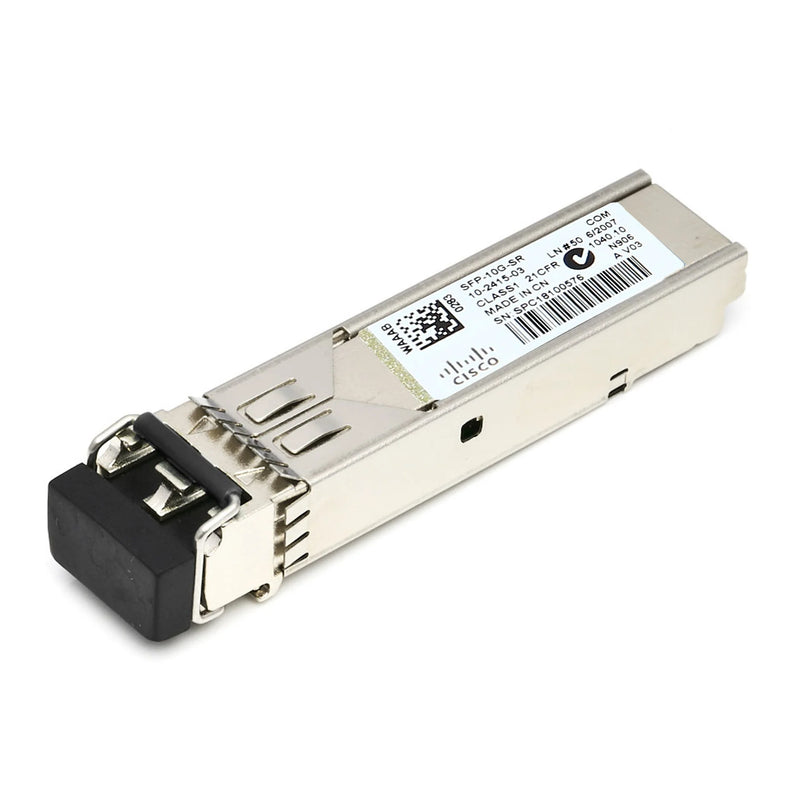

Cisco SFP-10G-SR Transceiver Module - 10GBASE-SR SFP+ 850nm 300m MMF LC DOM
SKU: JP-NET-1210 | MPN: SFP-10G-SR | EAN: 67263046
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco SFP-10G-SR Transceiver Module - 10GBASE-SR SFP+ 850nm 300m MMF LC DOM
The Cisco SFP-10G-SR transceiver supports 10GBASE-SR data rates over a standard pair of multi mode fiber (MMF) using duplex LC connectors, with a reach of up to 300 m over OM3 and 400 m over OM4. The module complies with IEEE 802.3ae 10GBASE-SR, SFF 8431 and SFF 8472 standards, and provides digital diagnostics via the I²C interface in accordance with SFP+ MSA, enabling real time monitoring of key operating parameters.
Thanks to the hot swappable design and reliable performance, this transceiver is easy to install and suitable for a wide range of applications, including 10G telecom links, data centers, high performance computing networks, enterprise core and distribution networks, and campus networks.
SPECIFICATIONS:
| Kenmerk | Waarde |
| Form Factor | SFP+ |
| Maximum Data Rate | 10.3Gbps |
| Optical Components | 850nm VCSEL |
| Wavelength | 850nm |
| Maximum Cable Distance | 300m @ OM3 / 400m @ OM4 |
| Interface | LC |
| Cable Type | MMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
Specifications
General Information
Connector & Interface
Performance
Electrical Specifications
Environment & Compliance
Compatibility & Coding
Certifications
Meets strict international safety and quality standards.
