Cisco

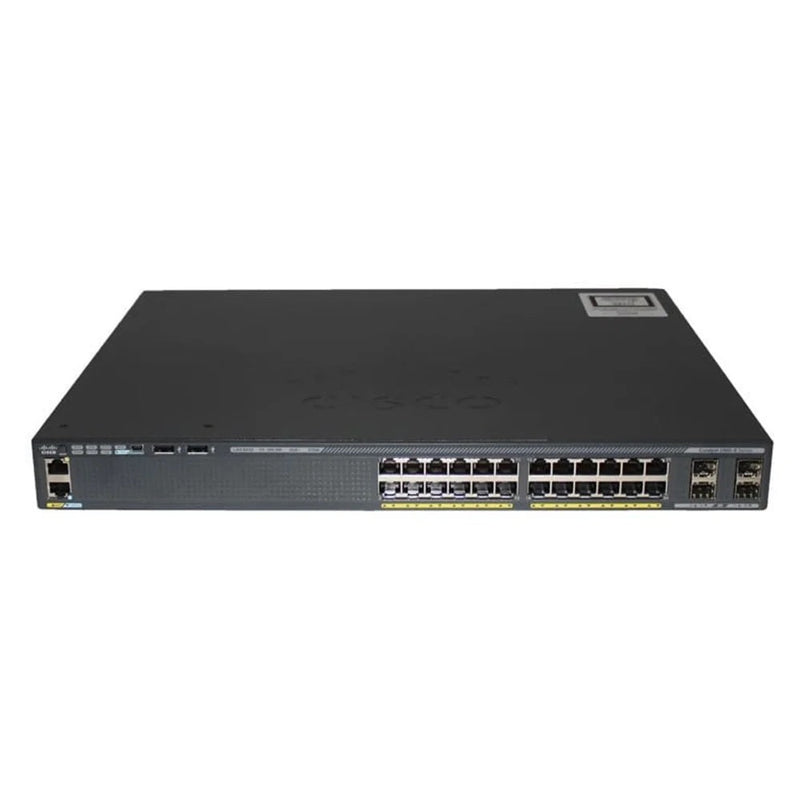

Cisco-Switches-WS-C2960X-24PSQ-L Refurbished
SKU: CC-NET-1255 | MPN: WS-C2960X-24PSQ-L | EAN: 882658554421
Stückpreis zzgl. MwSt.
Ausverkauf
Ausverkauft
Regulärer Preis
897,00 EUR
Normalpreis
Aktionspreis
897,00 EUR
Stückpreis
pro
Benötigen Sie fachkundige Beratung?
Unsere Produktspezialisten stehen Ihnen bei Fragen zu technischen Daten, zur Produktauswahl oder zur Installation gerne zur Verfügung.
About Cisco Cisco-Switches-WS-C2960X-24PSQ-L
| Leistung | Switching capacity: 216 Gbps Forwarding performance (packet size 64 bytes): 71.4 Mpps |
| RAM | 512 MB |
| PoE Budget | 110 W |
| Jumbo Frame Support | 9216 bytes |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Ports | 24 x 10/100/1000 (8 PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Subtype | Gigabit Ethernet |
| Features | Full duplex capability, Auto-Negotiation, BOOTP support, ARP support, VLAN support, Auto-Uplink (Auto MDI/MDI-X), IGMP Snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control |
| Construction | Original |
| Processor | 600 MHz |
| Enclosure Type | Desktop, rack mountable - 1U |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
| Power Over Ethernet | PoE+ |
| Capacity | Active VLANs: 1023 |
| Device Type | Switch - 24 ports - managed |
Technische Daten
Allgemeine Informationen
BrandCisco
Manufacturer Part NumberWS-C2960X-24PSQ-L
Product SeriesCatalyst 2960-X
Product TypeSwitch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2
Garantie1 Jahr
Ports & Connectivity
Port Configuration24 x 10/100/1000 (8 PoE+) + 2 x 1G SFP
Total Ports24
Port Speed (max)1 Gbps
Uplink Ports2x 1G SFP + 2x 1G RJ-45
Console Ports1x RJ-45, 1x USB mini-B
Power over Ethernet
PoE Standard802.3at (Type 2, 30 W)
PoE Ports8
PoE Budget110 W
Leistung
Switching Capacity216 Gbps
Forwarding Rate71.0 Mpps
Forwarding Bandwidth108 Gbps
MAC Address Table16k
Jumbo Frame9216 bytes
VLAN Support1023 VLAN IDs
Max Active VLANs1023
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, PIM, IGMP, HSRP, VRRP
Stacking & High Availability
Stacking SupportYes (FlexStack-Plus, up to 8 units)
System Hardware
CPUAPM86392 dual-core 600 MHz
RAM512 MB
Flash Memory128 MB
Power & Environment
Power Consumption (max)150 W
Power SupplyAC 100 to 240V internal fanless design
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 to 45 °C
Physical
Dimensions (W x D x H)444 x 356 x 44 mm
Management
Management TypeManaged
Management InterfaceWeb GUI, CLI, SSH, Telnet, SNMP
Compliance
MTBF462680 hours
End of Life2022-10-31
End of Sale2027-10-31
