Cisco

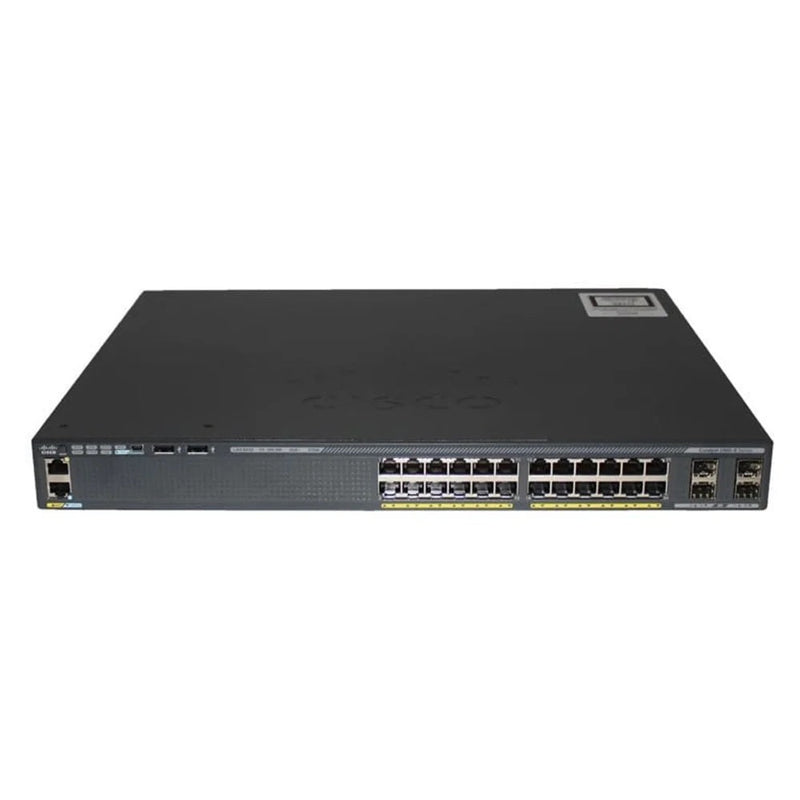

Cisco-Switches-WS-C2960X-24PS-L
SKU: CC-NET-1259 | MPN: WS-C2960X-24PS-L | EAN: 55466566
Unit price excl. VAT
Ausverkauf
Ausverkauft
Regular price
€180,00 EUR
Regular price
Sale price
€180,00 EUR
Stückpreis
pro
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Switches-WS-C2960X-24PS-L
| Leistung | Switching-Kapazität: 216 Gbit/s Weiterleitungsleistung (Paketgröße 64 Byte): 71,4 Mpps |
| PoE-Budget | 370 W |
| Maximale Anzahl von Einheiten in einem Stapel | 8 |
| Unterstützung für Jumbo-Frames | 9216 Byte |
| Authentifizierungsmethode | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Anschlüsse | 24 x 10/100/1000 (PoE+) + 4 x Gigabit-SFP |
| Einhaltung der Normen | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Untertyp | Gigabit-Ethernet |
| Funktionen | Layer-2-Switching, DHCP-Unterstützung, Power over Ethernet (PoE), Auto-Negotiation, ARP-Unterstützung, VLAN-Unterstützung, Auto-Uplink (Auto MDI/MDI-X), IGMP-Snooping, Intrusion Detection System (IDS), IPv6-Unterstützung, Rapid Spanning Tree Protocol (RSTP)-Unterstützung |
| Bauwesen | Original |
| Prozessor | 600 MHz |
| Gehäusetyp | Tischgerät, rackmontierbar – 1 HE |
| Protokoll für die Fernverwaltung | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Power over Ethernet | PoE+ |
| Kapazität | Virtuelle Schnittstellen (VLANs): 1023 |
| Gerätetyp | Switch – 24 Ports – verwaltet – stapelbar |
Technische Daten
General Information
BrandCisco
Manufacturer Part NumberWS-C2960X-24PS-L
Product SeriesCatalyst 2960-X
Product FamilyCatalyst 2960
Product TypeSwitch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2
Warranty1 year
Ports & Connectivity
Port Configuration24 x 10/100/1000 PoE+ + 4 x 1G SFP
Total Ports24
Port Speed (max)1 Gbps
Uplink Ports4x 1G SFP
Console Ports1x RJ-45, 1x USB mini-B
Power over Ethernet
PoE Standard802.3at (Type 2, 30 W)
PoE Ports24
PoE Budget370 W
Leistung
Switching Capacity216 Gbps
Forwarding Rate71.0 Mpps
Forwarding Bandwidth108 Gbps
MAC Address Table16k
Jumbo Frame9216 bytes
VLAN Support1023 VLAN IDs
Max Active VLANs1023
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, PIM, IGMP, HSRP, VRRP
Stacking & High Availability
Stacking SupportYes (FlexStack-Plus, up to 8 units)
System Hardware
CPUAPM86392 dual-core 600 MHz
RAM512 MB
Flash Memory128 MB
Power & Environment
Power Consumption (max)440 W
Power SupplyAC 100 to 240V internal, 640W PSU
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)444 x 356 x 44 mm
Management
Management TypeManaged
Management InterfaceWeb GUI, CLI, SSH, Telnet, SNMP
