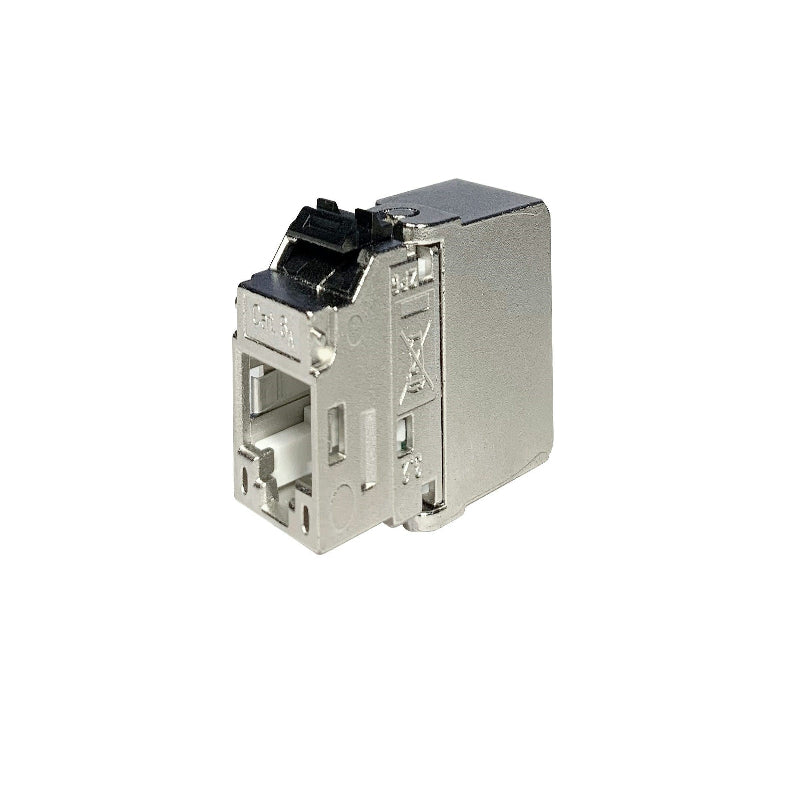

MS-C6A 1/8 Cat. 6A (IEC) 180°-K (Keystone) Silver 10

Designed for the transmission of digital and analog voice, video and data signals.

The MS C6A 1/8 Cat.6A IEC 180° K Keystone module is specified up to 500 MHz in accordance with the component standard IEC 60603 7 51.

When used with shielded Cat.6A, 7 and 7A data cables, the module supports all applications up to Class EA, including 10GBase T according to IEEE 802.3an.

Suitable for PoE, PoE+ and 4PPoE applications.

The module features a compact two part design with a reusable die cast zinc housing. Its construction is optimized for high packing density in outlets and data sockets, allowing installation of up to three modules in a single outlet.

The cable termination is designed for fast and efficient installation with tool free wire connection, reducing installation time. The module is suitable for both solid and stranded cables.

It delivers excellent electrical performance for 10 Gigabit Ethernet applications.

A 360° braid connection to the strain relief ensures reliable shielding, while the strain relief is secured with a snap in clip without the need for a cable tie.
