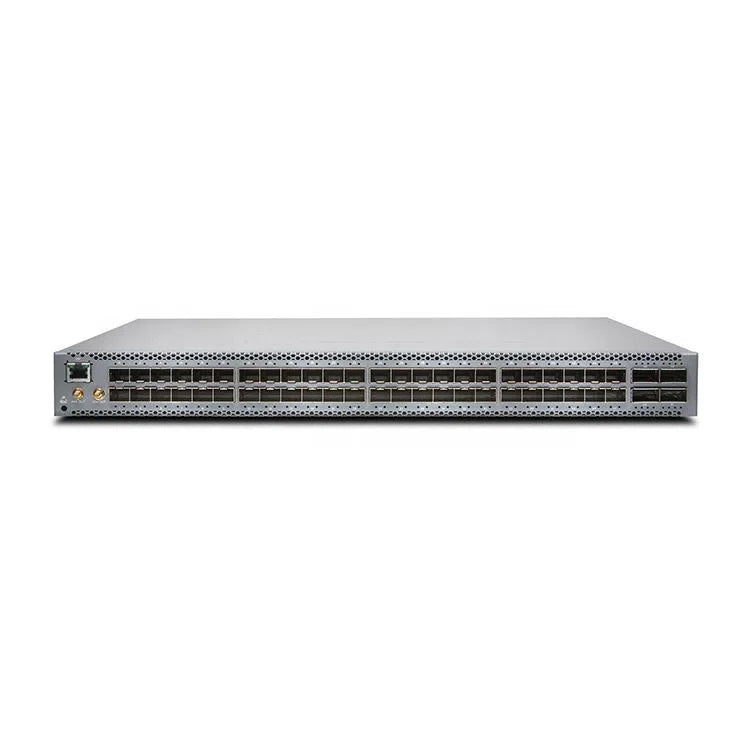

Juniper QFX5110-48S-AFO

Juniper QFX5110 switch

48x 10G SFP+ poorten

40/100G QSFP28 uplinks

datacenter core switch

high-performance netwerkswitch

spine-leaf architectuur

rackmount 1U switch

Junos OS switch

enterprise datacenter networking

professionele core switch

high-density 10G switch

Juniper

Juniper-Switches-QFX5110-48S-AFO Refurbished

Auf Lager | Lieferung: 1–2 Werktage

SKU: JP-NET-1167  |  MPN: QFX5110-48S-AFO  |  EAN: 0832938071469

Stückpreis zzgl. MwSt.
Ausverkauf Ausverkauft
Regulärer Preis 4.312,50 EUR
Normalpreis Aktionspreis 4.312,50 EUR

Benötigen Sie fachkundige Beratung?

Unsere Produktspezialisten stehen Ihnen bei Fragen zu technischen Daten, zur Produktauswahl oder zur Installation gerne zur Verfügung.

Montag bis Freitag von 8:30 bis 17:00 Uhr MEZ

About Juniper Juniper-Switches-QFX5110-48S-AFO

Performance: Switching Capacity: 1.76 Tbps ¦ Switching Capacity: 1.32 Bpps
Routing Protocol: OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3
Jumbo Frame Support: 9216 bytes
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Ports: 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit / 100 Gigabit QSFP28
MAC Address Table Size: 288K entries
Compliant standards: IEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1 Qbb, IEEE 802.1Qaz
Subtype: 10 Gigabit Ethernet
Features: MPLS support, VLAN support, IGMP snooping, port mirroring, store-and-forward, high availability, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) Support, PIM-SM-Sno
Construction: original
Enclosure Type: Front-to-back airflow rack mountable 1U
Interfaces: 48 x 1/10Gbit LAN SFP+ ¦ 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ¦ 1 x USB 2.0 ¦ 1 x serial (RS-232) ¦ 2 x administration
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, CLI
Power Device: Internal power supply - hot-plug
Capacity: MAC address entries: 288000 ¦ VLAN IDs: 4093 ¦ LAG groups: 104 ¦ Maximum member ports per LAG: 32 ¦ Firewall inbound filters: 6142 ¦ Firewall outbound filters: 1022 ¦ IPv4 routes (unicast): 128000 ¦ IPv4 -Routes (Multicast): 104000 ¦ IPv6 routes (Multicas
Device Type: Switch - 48 ports - L3 - managed

Technische Daten

Allgemeine Informationen

BrandJuniper
Manufacturer Part NumberQFX5110-48S-AFO
Product SeriesQFX5110
Product TypeData Center Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Garantie1 Jahr

Ports & Connectivity

Port Configuration48 x 1/10G SFP+ + 4 x 40/100G QSFP28
Total Ports52
Port Speed (max)100 Gbps
Uplink Ports4 x 40/100G QSFP28
Console Ports1 x RJ-45, 1 x USB-A, 1 x mgmt RJ-45

Power over Ethernet

PoE StandardNo PoE

Leistung

Switching Capacity1.76 Tbps
Forwarding Rate1320.0 Mpps
Latency550 ns
Buffer Memory16.0 MB
MAC Address Table256k
Jumbo Frame9216 bytes
VLAN Support4096
Max Active VLANs4094

Routing & Layer 3

IPv6 SupportYes
Routing ProtocolsStatic, OSPFv2, OSPFv3, BGP, BGP4+, BGP-EVPN, IS-IS, PIM, IGMP, MLD, VRRP, VRRPv3, MPLS, EVPN, VXLAN, GRE

Stacking & High Availability

Stacking SupportVirtual Chassis Fabric, MC-LAG

System Hardware

CPUIntel x86 quad-core
RAM8192 MB
Flash Memory32768 MB

Power & Environment

Power Consumption (max)350 W
Operating Temperature0 to 40 °C

Physical

Dimensions (W x D x H)439 x 520 x 44 mm

Management

Management TypeManaged
Management InterfaceCLI, SNMP, NETCONF, RESTCONF

Compliance

End of Life2021-01-20
