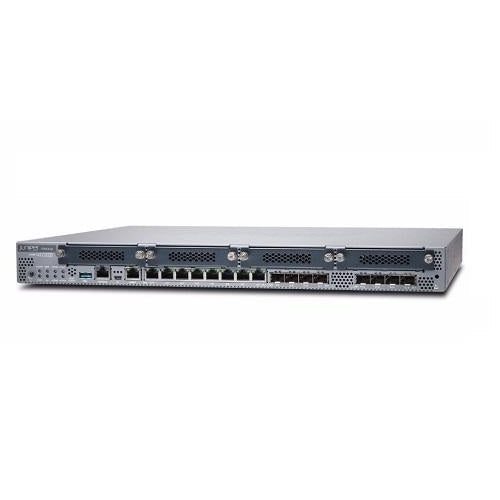

Juniper
Juniper
SKU: JP-NET-1206 | MPN: SRX340 | EAN: 67525190
Unit price excl. VAT
Ausverkauf
Ausverkauft
Regular price
€544,00 EUR
Regular price
Sale price
€544,00 EUR
Stückpreis
pro
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Juniper Juniper-Firewall-SRX340
| Technische Informationen – Anschlussmöglichkeiten | |
| Gesamtzahl der Anschlüsse an Bord | 16 x 1 GbE |
| Integrierte RJ-45-Anschlüsse | 8 x 1 GbE |
| Integrierte SFP-Transceiver-Anschlüsse | 8 x 1 GbE |
| MACsec-Ports | 16 x 1 GbE |
| Out-of-Band-Verwaltungsports (OOB) | 1 x 1 GbE |
| Mini-PIM-Steckplätze (WAN) | 4 |
| Konsole (RJ-45 + Mini-USB) | 1 |
| USB-2.0-Anschlüsse (Typ A) | 1 |
| Optionale PoE+-Anschlüsse | 0 |
| Speicher und Speicherkapazität | |
| Systemspeicher (RAM) | 4 GB |
| Speicher (Flash) | 8 GB |
| SSD-Steckplätze | 1 |
| Abmessungen und Leistung | |
| Formfaktor | 1U |
| Abmessungen (B × H × T) | 44,09 × 4,36 × 37,01 cm |
| Gewicht (Gerät und Netzteil) | 4,90 kg |
| Redundantes Netzteil | Nein |
| Stromversorgung | AC (extern) |
| Maximale PoE-Leistung | k. A. |
| Durchschnittlicher Stromverbrauch | 27 W / 112 W |
| Durchschnittliche Wärmeabgabe | 157 BTU/h / 755 BTU/h |
| Maximale Stromaufnahme | 1.364 A |
| Schallpegel | 35 dBA |
| Luftstrom / Kühlung | Von vorne nach hinten |
Technische Daten
General Information
BrandJuniper
Manufacturer Part NumberSRX340
Product SeriesSRX340
Product FamilySRX Branch
Product TypeFirewall
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Warranty1 year
Ports & Connectivity
Port Configuration16 x GE + 8 x 1G SFP
Total Ports16
Port Speed (max)1 Gbps
Uplink Ports8 x 1G SFP
Console Ports1 x RJ-45 console, 1 x USB-A, 1 x mini-USB, 1 x dedicated mgmt
Power over Ethernet
PoE StandardNo PoE
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, BGP4+, IS-IS, PIM, IGMP, MLD, MPLS, GRE, L2TPv3, VRRP, VRRPv3
Stacking & High Availability
HA ModeChassis Cluster, Active/Passive, Active/Active
Security Performance
Firewall Throughput3.0 Gbps
NGFW Throughput0.8 Gbps
Threat Prevention Throughput0.6 Gbps
IPS Throughput1.2 Gbps
IPsec VPN Throughput0.6 Gbps
SSL Inspection Throughput0.4 Gbps
Max Concurrent Sessions256000
New Sessions per Second18000
Max IPsec VPN Tunnels1000
System Hardware
CPUQuad-core 1.5 GHz Intel
RAM4096 MB
Flash Memory8192 MB
Power & Environment
Power Consumption (max)130 W
Operating Temperature0 °C to +40 °C
Physical
Dimensions (W x D x H)437 x 416 x 44.5 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF
Documentation
