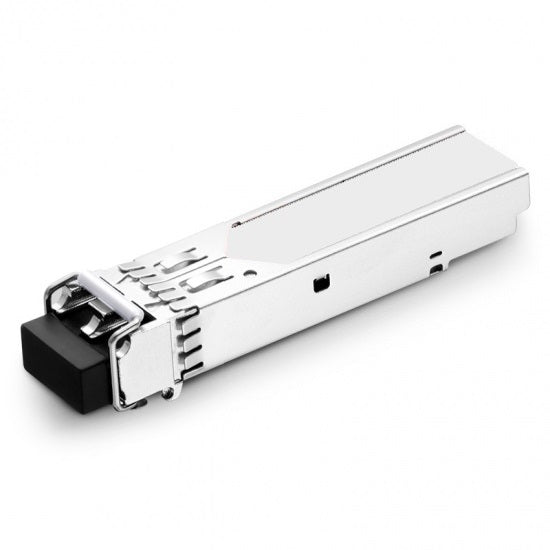

OC-3/STM-1 IR-1 SFP 1310nm 15km DOM LC SMF Transceiver Module
OC-3/STM-1 IR-1 SFP 1310nm 15km DOM LC SMF Transceiver Module
SKU: TP-TCV-270
Op voorraad
Verkocht: 0Couldn't load pickup availability
Cisco, Juniper Compatible SFP-1OC3-IR
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1310nm
Max Cable Distance 15km
Connector LC duplex
Optical Components FP 1310nm
Media SMF
DOM Support Yes
TX Power -15~-8dBm
Receiver Sensitivity < -28dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols MSA Compliant
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Mode OS2 SMF
Polish Typs ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
Connector Push Pull Tab LC to Push Pull Tab LC
Jacket OD 2.0mm
Fiber Modhgfterial (LSZH)
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber Class G.657.A1
Min Bend Radius 10mm
Operating Temperature -20 to 70°C
Storage Temperature -40 to 80°C
