Cisco

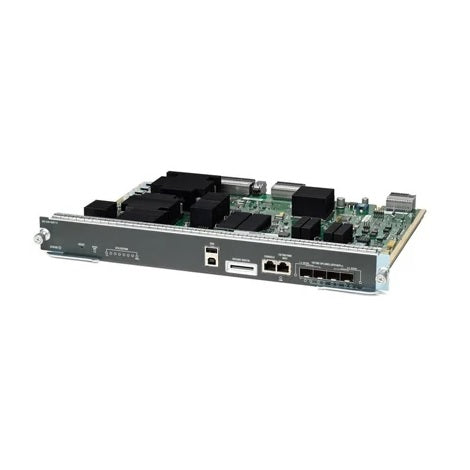

Cisco-Modules-WS-X45-SUP7-E
SKU: CC-NET-1211 | MPN: WS-X45-SUP7-E | EAN: 67230278
Unit price excl. VAT
Sale
Sold out
Regular price
€200,00 EUR
Regular price
Sale price
€200,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Modules-WS-X45-SUP7-E
| Device Type | Control Processor |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Processor | 1.5 GHz |
| RAM | 2 GB SDRAM (4 GB max) |
| Supported Flash Memory Cards | SD memory card |
| Routing Protocols | PIM-SM, PIM-DM, PIM-SSM |
| Performance |
Switching capacity: 848 Gbps Switching per slot: 48 Gbps IPv6 routing: 125 Mbps IPv4 routing: 250 Mbps |
| Interfaces |
1 x administration - RJ-45 1 x 1000Base-T (administration) - RJ-45 1 x USB - Type A |
| Expansion Slots | 4 (total) / 4 (free) x SFP+ |
| Compatible Slots | 1 x expansion slot |
| Capacity |
QoS Hardware Entries: 128000 Security Service Entries: 128000 Virtual Interfaces (VLANs): 4096 Multicast Entries (IPv4): 70000 Multicast Entries (IPv6): 64000 Multicast Entries (between IPv4 and IPv6): 16000 MAC address: 55000 |
| Features | Uplink, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | NEBS Level 3, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class B, AS/NZS 3260, ICES-003 Class A, FCC Part 15 A, EN 55022 Class A |
| Construction | Original |
Specifications
General Information
BrandCisco
Manufacturer Part NumberWS-X45-SUP7-E
Product SeriesCatalyst 4500-E Supervisor
Product FamilyCatalyst 4500
Product TypeSupervisor Engine
Chassis Form FactorSupervisor module (Catalyst 4500-E chassis)
OSI LayerLayer 2 / Layer 3
Warranty1 year
Ports & Connectivity
Port Configuration8 x 1G/10G SFP+ uplinks
Total Ports8
Port Speed (max)10 Gbps
Uplink Ports8 x 1G/10G SFP+
Power over Ethernet
PoE StandardNo PoE
Performance
Switching Capacity848 Gbps
Forwarding Rate250.0 Mpps
Jumbo Frame9216 bytes
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, EIGRP, IS-IS, PIM, IGMP, HSRP, VRRP, VRF-Lite, MPLS
Stacking & High Availability
Stacking SupportVSS (Virtual Switching System)
System Hardware
CPUDual-core 2.0 GHz x86
RAM8192 MB
Flash Memory4096 MB
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI
