Cisco

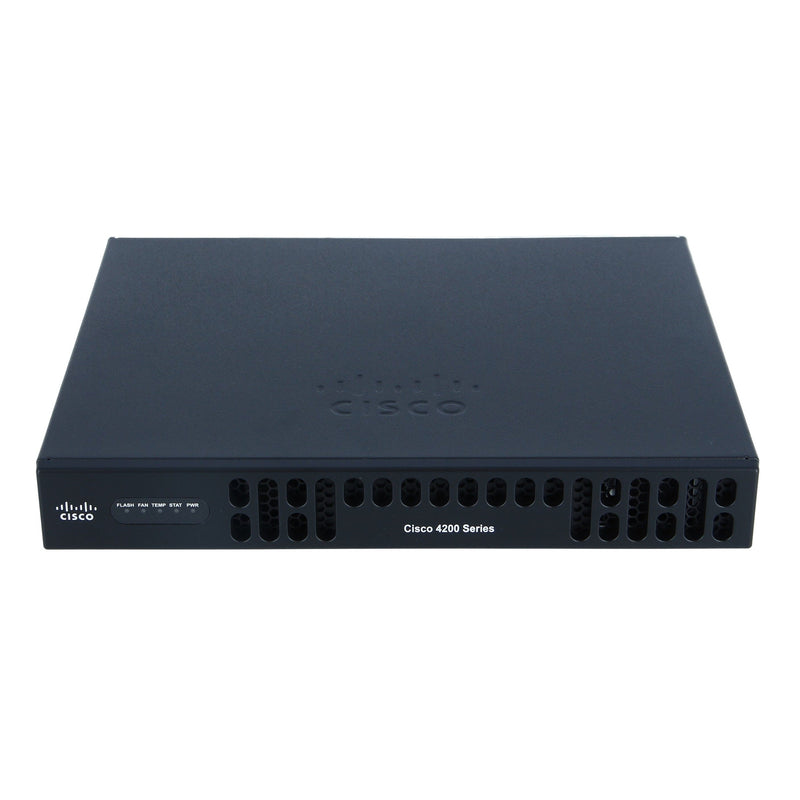

Cisco-Routers-ISR4221-SEC/K9
SKU: CC-NET-1219 | MPN: ISR4221-SEC/K9 | EAN: 65198662
Unit price excl. VAT
Sale
Sold out
Regular price
€660,00 EUR
Regular price
Sale price
€660,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Routers-ISR4221-SEC/K9
| Performance | Aggregate throughput: 35 Mbit/s |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, IPv4 Static Routing, IPv6 Static Routing, Policy-Based Routing (PBR), IPv4-to-IPv6 multicast |
| RAM | 4 GB (Installed) / 4 GB (Max) - DDR3 SDRAM |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Suitable for wall mounting, Access Control List (ACL) support, Quality of Service (QoS) |
| Construction | Original |
| Connectivity Technology | Wired |
| Enclosure Type | Rack mountable - modular - 1U |
| Interfaces | WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Serial: 1 x console - RJ-45 USB 2.0: 1 x 4-pin USB Type-A 1 x SFP (mini-GBIC) Management: 1 x 1000Base-T - RJ-45 |
| Remote Management Protocol | SNMP, RMON |
| Expansion Slots | 2 (total) / 2 (free) x NIM |
| Power Device | External power adapter |
| Flash Memory | 8 GB (Installed) / 8 GB (Max) |
| Device Type | Router |
Specifications
General Information
BrandCisco
Manufacturer Part NumberISR4221-SEC/K9
Product SeriesISR 4221
Product FamilyISR 4000
Product TypeIntegrated Services Router
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Warranty1 year
Ports & Connectivity
Port Configuration2 x GE WAN/LAN (RJ-45 + SFP)
Total Ports2
Port Speed (max)1 Gbps
Uplink Ports2 x GE WAN/LAN (RJ-45 + SFP)
Console Ports1 x RJ-45 console, 1 x mini-USB, 1 x USB-A
Power over Ethernet
PoE StandardNo PoE
Performance
Forwarding Bandwidth0.075 Gbps
Jumbo Frame9216 bytes
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, EIGRP, IS-IS, PIM, HSRP, VRRP, VRF-Lite, MPLS, GRE
System Hardware
CPUARM dual-core 1.2 GHz
RAM4096 MB
Flash Memory8192 MB
Power & Environment
Power Consumption (max)60 W
Power SupplyInternal AC 60W
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature0 °C to +40 °C
Physical
Dimensions (W x D x H)438 x 295 x 44 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF, RESTCONF
Documentation
