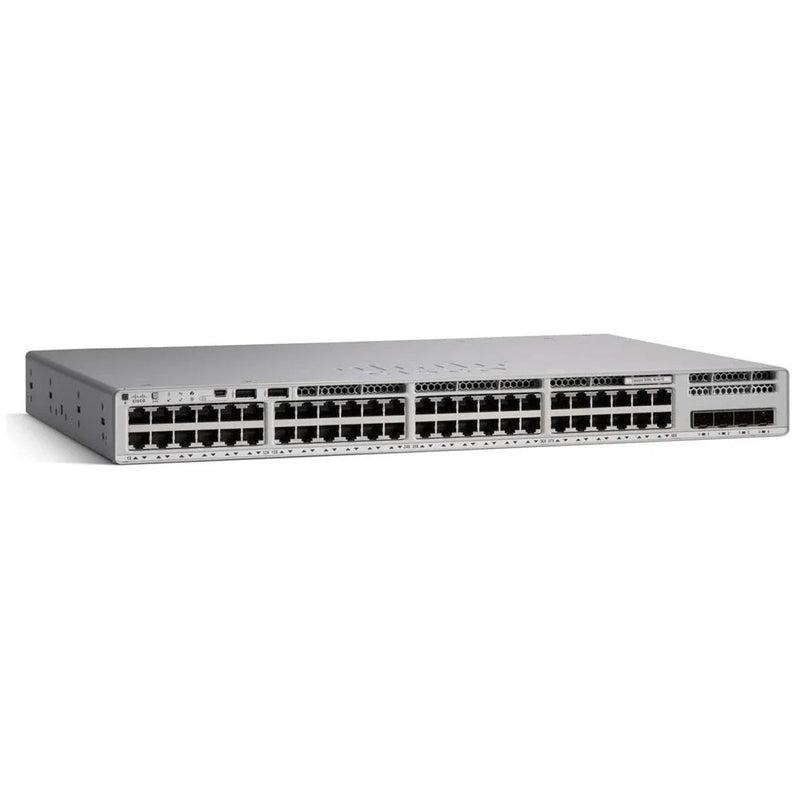

About Cisco Cisco-Switches-C9200L-48T-4X-A
| Performance | Multiple bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, Policy-Based Routing (PBR), RIPng, MSTP |
| RAM | 2GB |
| Jumbo Frame Support | 9198 bytes |
| Ports | 48 × 10/100/1000 + 4 × 10 Gigabit SFP+ (uplink) |
| MAC Address Table Size | 16,000 entries |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| Subtype | Gigabit Ethernet |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB) |
| Construction | Original |
| Enclosure Type | Rack mountable |
| Interfaces | 48 × 1000Base-T RJ-45 ¦ 4 × 10GBase-X SFP+ uplink ¦ 1 × network stacker ¦ 1 × management (LAN) RJ-45 ¦ 1 × console RJ-45 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 entries in routing table: 3000 ¦ IPv6 entries in routing table: 1500 ¦ Multicast scales: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLAN support: 1024 ¦ Switched virtual interfaces |
| Flash Memory | 4GB |
| Device Type | Switch - 48 ports - L3 - stackable |
Specifications
General Information
BrandCisco
Manufacturer Part NumberC9200L-48T-4X-A
Product SeriesCatalyst 9200L
Product FamilyCatalyst 9200
Product TypeManaged Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2 / Layer 3
Warranty1 year
Ports & Connectivity
Port Configuration48 x 10/100/1000 + 4 x 10G SFP+
Total Ports52
Port Speed (max)1 Gbps
Uplink Ports4 x 10G SFP+
Console Ports1 x RJ-45, 1 x USB mini-B
Power over Ethernet
PoE StandardNo PoE
Performance
Switching Capacity176 Gbps
Forwarding Rate130.95 Mpps
Forwarding Bandwidth104 Gbps
MAC Address Table32k
Jumbo Frame9198 bytes
VLAN Support4094
Max Active VLANs1024
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, EIGRP, PIM, IGMP, HSRP, VRRP, VXLAN
Stacking & High Availability
Stacking SupportStackWise-80 (80 Gbps, 8 switches)
System Hardware
CPUARM Cortex-A9 1.4 GHz dual-core
RAM2048 MB
Flash Memory4096 MB
Power & Environment
Power Consumption (max)95 W
Power SupplyPWR-C5-600WAC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)445 x 445 x 44.5 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF, RESTCONF
