Cisco
Cisco-Switches-C9200L-48P-4X-E
SKU: CC-NET-1243 | MPN: C9200L-48P-4X-E | EAN: 61069894
Unit price excl. VAT
Sale
Sold out
Regular price
€3.600,00 EUR
Regular price
Sale price
€3.600,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

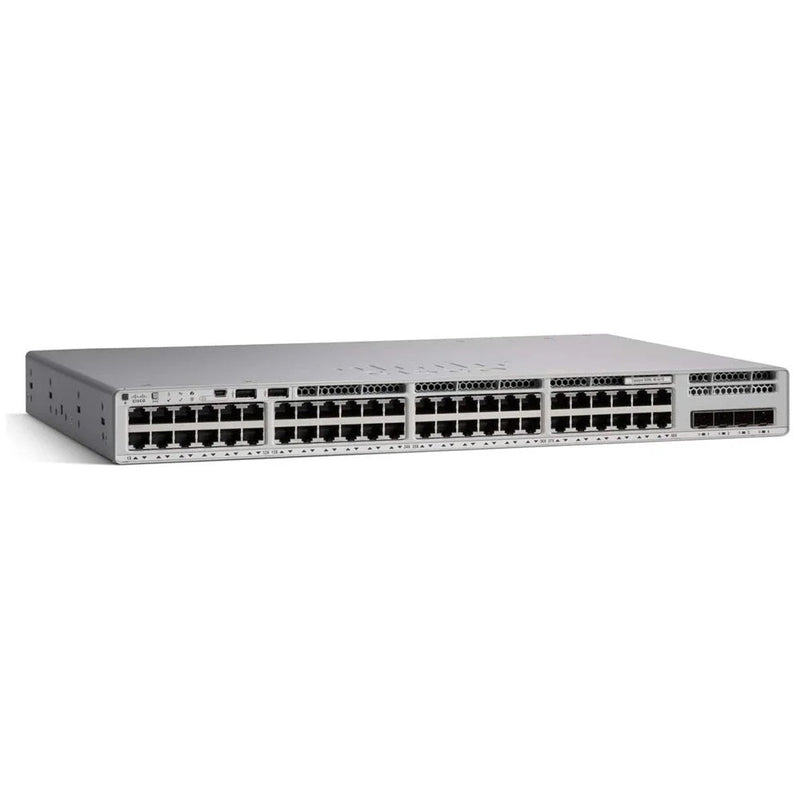

About Cisco Cisco-Switches-C9200L-48P-4X-E
| Performance | Multiple bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps |
| Routing Protocol | OSPF, RIP, VRRP, Policy Based Routing (PBR), MSTP |
| RAM | 2GB |
| Jumbo Frame Support | 9198 bytes |
| Ports | 48 × 10/100/1000 (PoE+) + 4 × 10 Gigabit SFP (uplink) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Subtype | Gigabit Ethernet |
| Features | EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer |
| Construction | Original |
| Built-in Devices | RFID tag |
| Enclosure Type | Rack mountable |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
| Power Over Ethernet (PoE) | PoE+ |
| Capacity | Virtual networks: 1 ¦ MAC address: 16000 ¦ IPv4 routes: 11000 ¦ IPv4 entries in routing table: 3000 ¦ IPv6 entries in routing table: 1500 ¦ Multicast scales: 1000 ¦ ACL relay entries: 1500 ¦ FNF entries: 16000 ¦ Switched virtual interfaces (SVIs) |
| Flash Memory | 4GB |
| Device Type | Switch - 48 ports - L3 - managed |
Specifications
General Information
BrandCisco
Manufacturer Part NumberC9200L-48P-4X-E
Product SeriesCatalyst 9200L
Product FamilyCatalyst 9200
Product TypeManaged Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2 / Layer 3
Warranty1 year
Ports & Connectivity
Port Configuration48 x 10/100/1000 PoE+ + 4 x 10G SFP+
Total Ports52
Port Speed (max)1 Gbps
Uplink Ports4 x 10G SFP+
Console Ports1 x RJ-45, 1 x USB mini-B
Power over Ethernet
PoE Standard802.3at (Type 2, 30 W)
PoE Ports48
PoE Budget740 W
Performance
Switching Capacity176 Gbps
Forwarding Rate130.95 Mpps
Forwarding Bandwidth104 Gbps
MAC Address Table32k
Jumbo Frame9198 bytes
VLAN Support4094
Max Active VLANs1024
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, EIGRP, PIM, IGMP, HSRP, VRRP, VXLAN
Stacking & High Availability
Stacking SupportStackWise-80 (80 Gbps, 8 switches)
System Hardware
CPUARM Cortex-A9 1.4 GHz dual-core
RAM2048 MB
Flash Memory4096 MB
Power & Environment
Power Consumption (max)1000 W
Power SupplyPWR-C5-1KWAC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)445 x 445 x 44.5 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF, RESTCONF
