Cisco

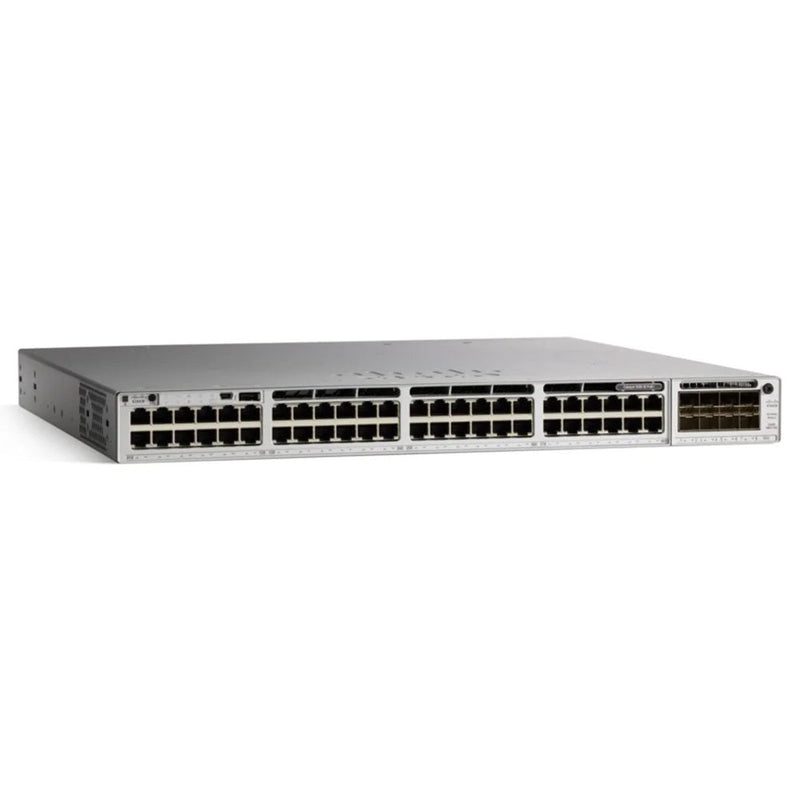

Cisco-Switches-C9300-48P-A
SKU: CC-NET-1245 | MPN: C9300-48P-A | EAN: 59890246
Unit price excl. VAT
Sale
Sold out
Regular price
€2.380,00 EUR
Regular price
Sale price
€2.380,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Switches-C9300-48P-A
| Performance | Switching capacity: 128 Gbps ¦ Multiple bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| Encryption Algorithm | 128-bit AES |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, Policy-Based Routing (PBR), RIPng |
| PoE Budget | 437W |
| Jumbo Frame Support | 9198 bytes |
| Ports | 48 × 10/100/1000 (PoE+) |
| MAC Address Table Size | 32,000 entries |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Subtype | Gigabit Ethernet |
| Features | DHCP support, trunking, syslog support, full-duplex mode, stateful switchover (SSO), class-based weighted fair queuing (CBWFQ), weighted random early detection (WRED), spanning tree protocol (STP) support, Access Control List (ACL) support |
| Construction | Original |
| Enclosure Type | Rack mountable 1U |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Power Over Ethernet (PoE) | PoE+ |
| Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
Specifications
General Information
BrandCisco
Manufacturer Part NumberC9300-48P-A
Product SeriesCatalyst 9300
Product FamilyCatalyst 9300
Product TypeManaged Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2 / Layer 3
Warranty1 year
Ports & Connectivity
Port Configuration48 x 10/100/1000 PoE+ + modular uplink (NM)
Total Ports48
Port Speed (max)1 Gbps
Uplink PortsModular (1G/10G/25G/40G via NM)
Console Ports1 x RJ-45, 1 x USB Type-A, 1 x USB mini-B, 1 x SFP
Power over Ethernet
PoE Standard802.3at (Type 2, 30 W)
PoE Ports48
PoE Budget822 W
Performance
Switching Capacity176 Gbps (front-panel)
Forwarding Rate130.95 Mpps
Forwarding Bandwidth208 Gbps
MAC Address Table32k
Jumbo Frame9216 bytes
VLAN Support4094
Max Active VLANs4094
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, RIPv2, OSPFv2, OSPFv3, BGP, BGP-EVPN, EIGRP, IS-IS, PIM, IGMP, HSRP, VRRP, VXLAN, EVPN, MPLS, VRF-Lite, GRE
Stacking & High Availability
Stacking SupportStackWise-480 (480 Gbps, 8 switches), StackPower
System Hardware
CPUx86 2.4 GHz quad-core
RAM8192 MB
Flash Memory16384 MB
Power & Environment
Power Consumption (max)1100 W
Power SupplyDual hot-swap 1100WAC / 715WAC / 350WAC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)445 x 445 x 44.5 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, Web GUI, NETCONF, RESTCONF, gNMI
Documentation
