Cisco

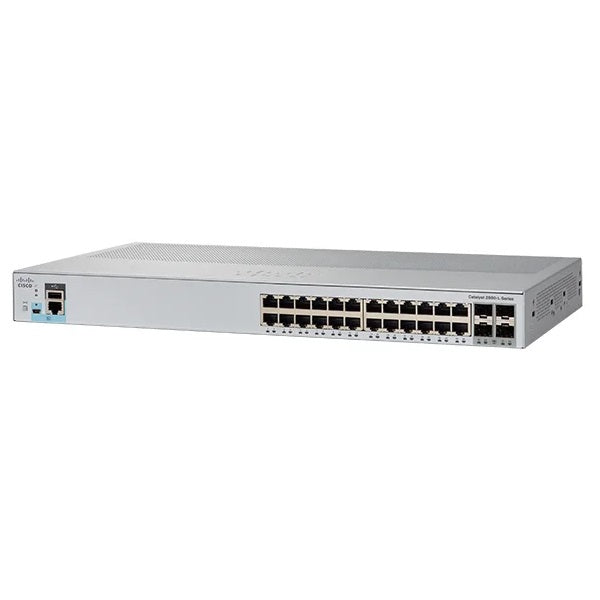

Cisco-Switches-WS-C2960L-24TQ-LL
SKU: CC-NET-1247 | MPN: WS-C2960L-24TQ-LL | EAN: 57498182
Unit price excl. VAT
Sale
Sold out
Regular price
€1.309,00 EUR
Regular price
Sale price
€1.309,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Switches-WS-C2960L-24TQ-LL
| Performance | Switching bandwidth: 128 Gbps ¦ Forwarding bandwidth: 64 Gbps ¦ Forwarding performance (packet size 64 bytes): 41.67 Mpps |
| Routing Protocol | IGMP, MLDv2, MLD |
| RAM | 512MB |
| Jumbo Frame Support | 10,240 bytes |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Ports | 24 × 10/100/1000 + 4 × 1 Gigabit / 10 Gigabit SFP+ |
| MAC Address Table Size | 8000 entries |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3az, IEEE 802.1AX |
| Subtype | Gigabit Ethernet |
| Features | DHCP support, Auto-Negotiation, BOOTP support, ARP support, Auto-Uplink (Auto MDI/MDI-X), Intrusion Detection System (IDS), Weighted Round Robin (WRR) Queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control |
| Construction | Original |
| Processor | ARM7: 800 MHz |
| Enclosure Type | Desktop, rack mountable |
| Remote Management Protocol | SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Capacity | VLAN support: 4094 ¦ Active VLANs: 64 ¦ STP cases: 64 ¦ SPAN sessions: 1 |
| Device Type | Switch - 24 ports - managed |
Specifications
General Information
BrandCisco
Manufacturer Part NumberWS-C2960L-24TQ-LL
Product SeriesCatalyst 2960-L
Product FamilyCatalyst 2960
Product TypeSwitch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 2
Warranty1 year
Ports & Connectivity
Port Configuration24 x 10/100/1000 + 4 x 10G SFP+
Total Ports24
Port Speed (max)1 Gbps
Uplink Ports4x 10G SFP+
Console Ports1x RJ-45, 1x USB mini-B
Power over Ethernet
PoE StandardNo PoE
Performance
Switching Capacity128 Gbps
Forwarding Rate41.0 Mpps
Forwarding Bandwidth64 Gbps
MAC Address Table8k
Jumbo Frame9216 bytes
VLAN Support4094 VLAN IDs
Max Active VLANs64
Routing & Layer 3
IPv6 SupportYes
Routing ProtocolsStatic, IGMP
Stacking & High Availability
Stacking SupportNo
System Hardware
CPUARM Cortex-A9 800 MHz
RAM512 MB
Flash Memory256 MB
Power & Environment
Power Consumption (max)25 W
Power SupplyAC 100 to 240V internal
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature-5 °C to +45 °C
Physical
Dimensions (W x D x H)444 x 200 x 44 mm
Management
Management TypeManaged
Management InterfaceWeb GUI, CLI, SSH, Telnet, SNMP
