Cisco

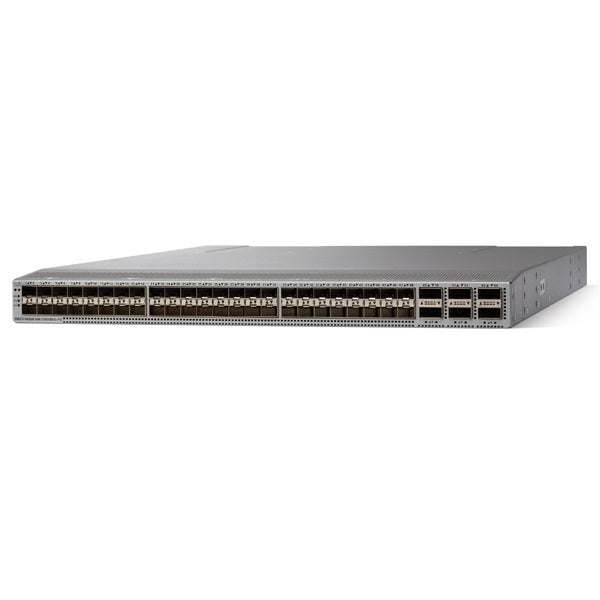

Cisco-Switches-N9K-C93180YC-FX
SKU: CC-NET-1263 | MPN: N9K-C93180YC-FX | EAN: 54811206
Unit price excl. VAT
Sale
Sold out
Regular price
€3.375,00 EUR
Regular price
Sale price
€3.375,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Cisco Cisco-Switches-N9K-C93180YC-FX
| Performance | Bandwidth: 3.6 Tbit/s ¦ Active SPAN sessions: 4 |
| Routing Protocol | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| RAM | 64GB |
| Installed Qty | 2 (Max) |
| Ports | 48 × 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 × 40/100 Gigabit QSFP28 / FCoE |
| MAC Address Table Size | 512,000 entries |
| Compliant Standards | IEEE 802.1ae |
| Subtype | 25 Gigabit Ethernet / 32Gb Fiber Channel |
| Features | Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Virtual PortChannel (vPC) technology, MACsec support, 4 fans, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM) |
| Construction | Original |
| Built-in Devices | 128GB SSD |
| Enclosure Type | Rack mountable 1U |
| Interfaces | 48 × 1/10/25Gbit LAN / 8/16/32Gb Fiber Channel SFP+ downlink ¦ 6 × 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 × administration RJ-45 ¦ 1 × USB ¦ 1 × serial (RS-232) |
| Power Device | Internal power supply - hot-plug |
| Capacity | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree cases: 4000 ¦ Maximum number of links in a slot channel: 32 ¦ Maximum number of slot channels: 512 ¦ ECMP paths: 64 |
| Device Type | Switch - 48 ports - L3 - managed |
Specifications
General Information
BrandCisco
Manufacturer Part NumberN9K-C93180YC-FX
Product SeriesNexus 9300-FX
Product FamilyNexus 9000
Product TypeData Center Switch
Chassis Form Factor1U Rack-mountable
OSI LayerLayer 3
Warranty1 year
Ports & Connectivity
Port Configuration48 x 1/10/25G SFP28 + 6 x 40/100G QSFP28
Total Ports54
Port Speed (max)100 Gbps
Uplink Ports6 x 40/100G QSFP28
Console Ports1 x RJ-45, 1 x USB-A, 1 x mgmt RJ-45
Power over Ethernet
PoE StandardNo PoE
Performance
Switching Capacity3.6 Tbps
Forwarding Rate2400.0 Mpps
Forwarding Bandwidth3600 Gbps
Latency1200 ns
Buffer Memory40.0 MB
MAC Address Table256k
Jumbo Frame9216 bytes
VLAN Support4096
Max Active VLANs4094
Routing & Layer 3
IPv4 Routes (max)256000
IPv6 SupportYes
Routing ProtocolsStatic, OSPFv2, OSPFv3, BGP, BGP4+, BGP-EVPN, IS-IS, PIM, IGMP, MLD, VRRP, VRRPv3, VXLAN, EVPN, MPLS
Stacking & High Availability
Stacking SupportvPC (Virtual Port-Channel)
System Hardware
CPUIntel x86 quad-core 1.8 GHz
RAM16384 MB
Flash Memory65536 MB
Power & Environment
Power Consumption (max)1100 W
Power SupplyDual hot-swap 1100W AC/DC
Operating Voltage100 to 240 V AC, 50/60 Hz
Operating Temperature0 °C to +40 °C
Physical
Dimensions (W x D x H)437 x 460 x 44 mm
Management
Management TypeManaged
Management InterfaceCLI, SNMP, NETCONF, RESTCONF, gNMI, NX-API
Documentation
Reviews
No reviews yet.
