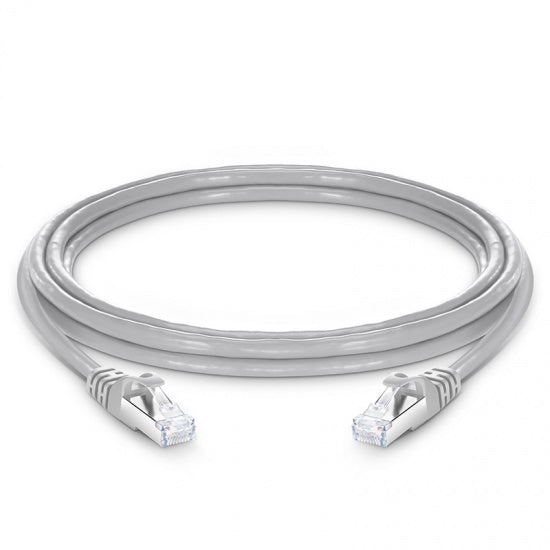

NETCONNECT Cat6A S/FTP RJ45 Ethernet patch cable grey LSZH shielded 10G network cable for LAN and data center connectivity

CommScope

NETCONNECT® Cat 6A S/FTP RJ45 Patch Cord LSZH

In stock | Delivery: 1-2 business days

SKU: CS-CP-362  |  MPN: NPC6ASZDB  |  EAN: 75104070

Unit price excl. VAT
Sale Sold out
Regular price €11,29 EUR
Regular price Sale price €11,29 EUR

Need expert advice?

Our product specialists are ready to help with specifications, product selection, or installation questions.

Monday to Friday 8:30 to 17:30 CET

About CommScope NETCONNECT® Cat 6A S/FTP RJ45 Patch Cord LSZH

High quality patch cords that exceed current industry standards and fully comply with NETCONNECT channel specifications. The standardized, transparent and slim strain relief provides a uniform appearance and is ideal for installations with high port density.

Thanks to interchangeable colored clips that fit into the transparent boot, it is not necessary to use a separate version for each cable color. In addition, colored pull tabs are available, allowing the RJ45 plug to be easily and conveniently removed from the connector.

Specifications

General Information

BrandCommScope
Manufacturer Part NumberNPC6ASZDB
Cable Category (TIA/US)Cat6a
Class (ISO/EU)Class EA
Warranty1 year

Cable Construction

Construction4x2 PiMF + overall braid
Conductor FormStranded
Conductor MaterialBare copper
ShieldingS/FTP
Pair Count4
AWG26
Jacket MaterialLSZH
Jacket ColorBlack, Blue, Green, Grey, Red, White, Yellow
Cable Diameter5.84 mm

Connector & Interface

Connector ARJ45 Standard
Connector BRJ45 Standard
Connector StandardIEC 60603-7-7 (Cat 6A STP)
Wiring SchemeT568B
Contact PlatingGold over nickel
Boot TypeSnagless
Mating Cycles≥ 3000
Plug Retention Force≥ 50 N

Performance

Bandwidth500 MHz
Data Rate10 Gbps
Impedance100 Ω
PoE Standard802.3bt (Type 4, 90 W)
PoE Wattage90 W

Electrical Specifications

Current Rating1.5 A
DC Resistance0.3 Ω
Contact Resistance20 mΩ
Insulation Resistance500 MΩ
Dielectric Withstand Voltage1000 Vac

Environment & Compliance

Operating Temperature-20 °C to +60 °C
Storage Temperature-40 °C to +70 °C
CPR EuroclassDca
Flammability RatingUL 94 V-0
Industry StandardsISO/IEC 11801, IEEE 802.3
