CommScope
Fiber Optic Patch Cord, Duplex, Singlemode, LC/UPC to SC/APC
SKU: CS-FPS-278 | EAN: 21756486
Unit price excl. VAT
Sale
Sold out
Regular price
€9,35 EUR
Regular price
Sale price
€9,35 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About CommScope Fiber Optic Patch Cord, Duplex, Singlemode, LC/UPC to SC/APC

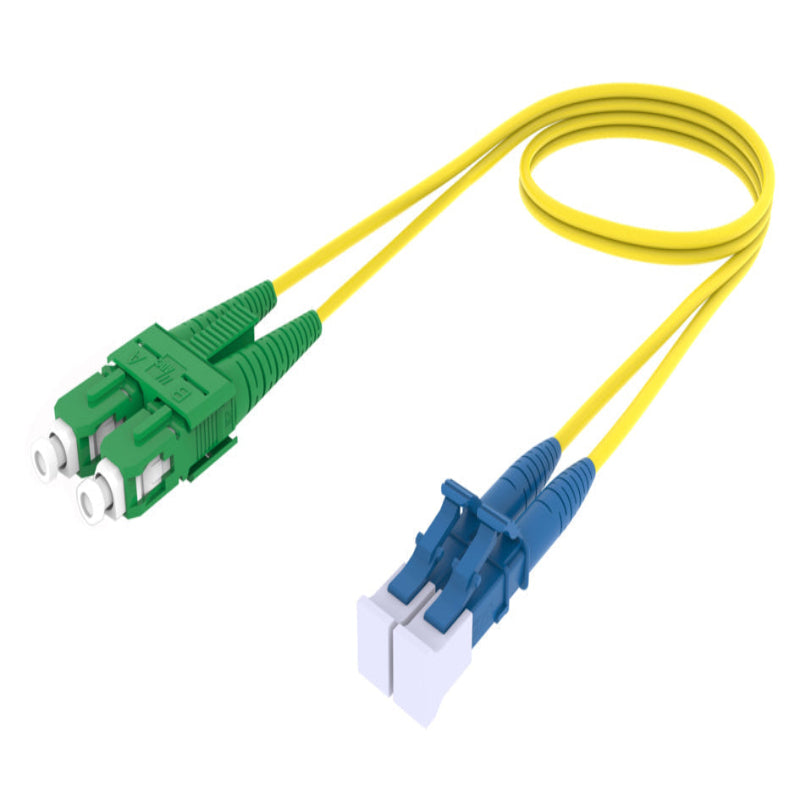

Fiber optic patch cord, duplex, singlemode, LC/UPC to SC/APC 9°, yellow.
SPECIFICATIONS:
|
| Connector A, quantity | 2 |
| Color, strain relief A | Blue |
| Color, connector A | Blue |
| Connector B, quantity | 2 |
| Color, strain relief B | Green |
| Color, connector B | Green |
| Interface, connector A | LC/UPC |
| Interface, connector B | SC/APC |
| Interface feature, connector B | APC 9° |
| Jacket color | Yellow |
| Total number of fibers | 2 |
| Fiber mode | Singlemode |
| Fiber type | G.657.A1, TeraSPEED® |
| Performance class | Standard Class C |
| Insertion loss, maximum, connector A | 0.5 dB |
| Insertion loss, maximum, connector B | 0.5 dB |
| Return loss, minimum, connector A | 50 dB |
| Return loss, minimum, connector B | 60 dB |
| Operating temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating temperature note | Specification applies to non terminated bulk fiber cable |
| Environmental class | Low Smoke Zero Halogen LSZH |
|
Download: |
Datasheet |
Specifications
General Information
BrandCommScope
Product TypeFiber Patch Cord Singlemode
Warranty1 year
Cable Construction
Cable TypeFiber Patch Cord
Pair Count2
Jacket MaterialLSZH
Jacket ColorYellow
Cable Diameter2.0 mm
Connector & Interface
Connector TypeLC/UPC to SC/APC
Connector ALC
Connector BSC
Polish AUPC
Polish BAPC
Boot TypeStandard
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Fiber GradeG.657.A1
Fiber CountDuplex
Insertion Loss A · Max≤0.3 dB
Return Loss A · Min≥50 dB
Operating Wavelength1310nm, 1550nm
Environment & Compliance
Operating Temperature-20 °C to +70 °C
Storage Temperature-40 °C to +80 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
