CommScope
OM4 MPO12 (Unpinned) to LC, Ruggedized Fanout Fiber Cable, 12-Fiber 2m
SKU: CS-MPO-159 | MPN: ANXMPLCAD-MSM002
Unit price excl. VAT
Sale
Sold out
Regular price
€524,11 EUR
Regular price
Sale price
€524,11 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

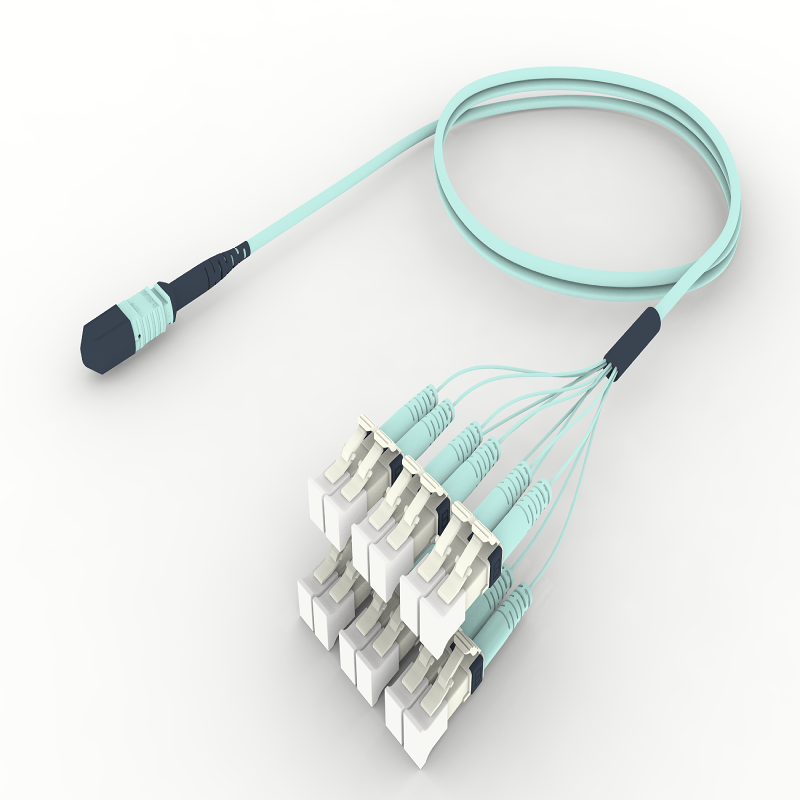

About CommScope OM4 MPO12 (Unpinned) to LC, Ruggedized Fanout Fiber Cable, 12-Fiber
OM4 MPO12 (unpinned) to LC, ruggedized fanout fiber cable, 12 fiber, Method A, Low Smoke Zero Halogen, 3 m, M - Aqua, S - 36 inch breakout (end A/end B), no gland, no pulling grip
Specifications
General Information
BrandCommScope
Manufacturer Part NumberANXMPLCAD-MSM002
Product TypeFanout
Warranty1 year
Cable Construction
Jacket MaterialLSZH
Jacket ColorAqua
Cable Diameter3.0 mm
Min Bend Radius (Permanent)81.0 mm
Tensile Load Max667 N
Connector & Interface
Connector TypeMPO to 12x LC Simplex
Connector GenderFemale
PolishUPC to UPC
PolarityType A
Performance
Fiber ModeMultimode
Fiber TypeOM4
Fiber Count12
Insertion Loss Max≤0.55 dB
Return Loss Min≥27 dB
Operating Wavelength850 nm/1300 nm
Environment & Compliance
Operating Temperature-10 to 60 °C
Storage Temperature-40 to 70 °C
Installation Temperature-20 to 60 °C
CPR EuroclassDca
Smoke Density StandardIEC 61034-2
Halogen Free StandardIEC 60754-2
Flame Propagation StandardIEC 60332-3, UL 1666, UL 1685
Certifications
Meets strict international safety and quality standards.
