CommScope

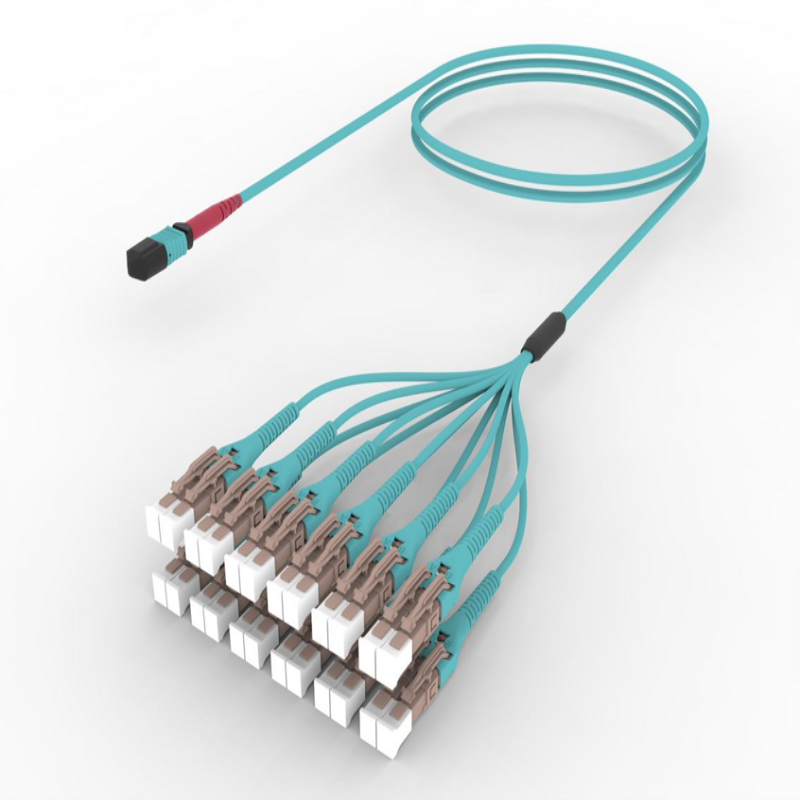

Ultra Low Loss OM4 MPO24 Unpinned to LC/UPC Uniboot 24-Fiber Low Smoke Zero Halogen/Riser 3m
SKU: CS-MPO-176 | MPN: URX2PLUHF-MSM003
Unit price excl. VAT
Sale
Sold out
Regular price
€1.152,32 EUR
Regular price
Sale price
€1.152,32 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About CommScope Ultra Low Loss OM4 MPO24 Unpinned to LC/UPC Uniboot 24-Fiber Low Smoke Zero Halogen/Riser
Ultra Low Loss OM4 MPO24 unpinned to LC/UPC Uniboot 24 fiber Low Smoke Zero Halogen Riser array cord, 3 m, M - Aqua, S - 36 inch breakout (end B), no gland, no pulling grip
SPECIFICATIONS:
|
| Color, boot A | Red |
| Color, connector A | Aqua |
| Color, boot B | Aqua |
| Color, connector B | Beige |
| Construction type | Stranded |
| Furcation color | Aqua |
| Interface, connector A | MPO 24/UPC Female |
| Interface, connector B | LC/UPC |
| Connector B feature | Uniboot |
| Jacket color | Aqua |
| Polarity method | Method B Enhanced (ULL) |
| Fibers per sub unit | 24 |
| Total number of fibers | 24 |
|
Download: |
Datasheet |
Specifications
General Information
BrandCommScope
Manufacturer Part NumberURX2PLUHF-MSM003
Product SeriesSYSTIMAX ULL
Product TypeFanout
Warranty1 year
Cable Construction
Jacket MaterialLSZH
Jacket ColorAqua
Cable Diameter3.0 mm
Min Bend Radius (Permanent)45.0 mm
Tensile Load Max334 N
Connector & Interface
Connector TypeMPO to 24x LC Simplex
Connector GenderFemale
PolishUPC to UPC
PolarityType B
Performance
Fiber ModeMultimode
Fiber TypeOM4
Fiber Count24
Insertion Loss Max≤0.85 dB
Return Loss Min≥28 dB
Operating Wavelength850 nm/1300 nm
Environment & Compliance
Operating Temperature-10 to 60 °C
Storage Temperature-40 to 70 °C
Installation Temperature0 to 60 °C
CPR EuroclassDca
Smoke Density StandardIEC 61034-2
Halogen Free StandardIEC 60754-2
Flame Propagation StandardIEC 60332-3, UL 1666, UL 1685
Certifications
Meets strict international safety and quality standards.
