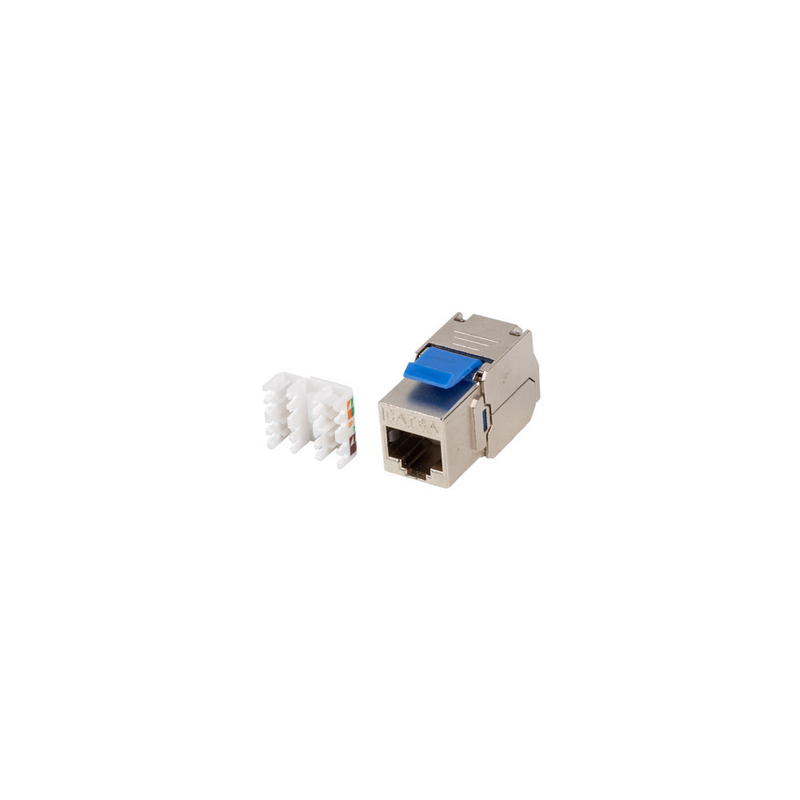

KEYSTONE MODULE TOOLLESS RJ45 CAT.6A FTP 20Pc
SKU: TP-FEC-1068 | EAN: 28144966
Unit price excl. VAT
Sale
Sold out
Regular price
€4,95 EUR
Regular price
Sale price
€4,95 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About KEYSTONE MODULE TOOLLESS RJ45 CAT.6A FTP 20Pc
The Keystone RJ45 CAT6A FTP connector is a versatile solution that can be freely installed in various keystone adapters with standard dimensions (height × width) of 16.10 × 14.50 mm. This makes the connector compatible with 45×45 mounting adapters, installation frames, modular panels and many other adapter types, ensuring wide applicability.
The LAN connector is equipped with an IDC termination cap and color coded connection markings according to T568A/B. The universal LSA terminals are suitable for installation using an LSA tool.
SPECIFICATIONS:
|
| Type | Module |
| Connectors | RJ45 |
| ICT category | Cat. 6A |
| Shielded type | S/FTP |
| Toolless installation | Yes |
| Housing material | Metal |
| Connector material | Phosphor bronze |
| Color | Silver |
| Socket lifetime | > 750 cycles |
| Supported AWG | 22 – 24 |
| PoE power types | PoE, PoE+, UPoE |
| Maximum voltage | 57 V |
| Keystone port (W × H) | 14.5 × 16.1 mm |
| Dimensions (L × W × H) | 34 × 14.5 × 19.6 mm |
| Ambient temperature | −10 to 60 °C |
Specifications
General Information
Product SeriesRJ45 Keystone Jack
Warranty1 year
Cable Construction
Cable TypeCat6a
Connector & Interface
Front ConnectorRJ45
