Datwyler

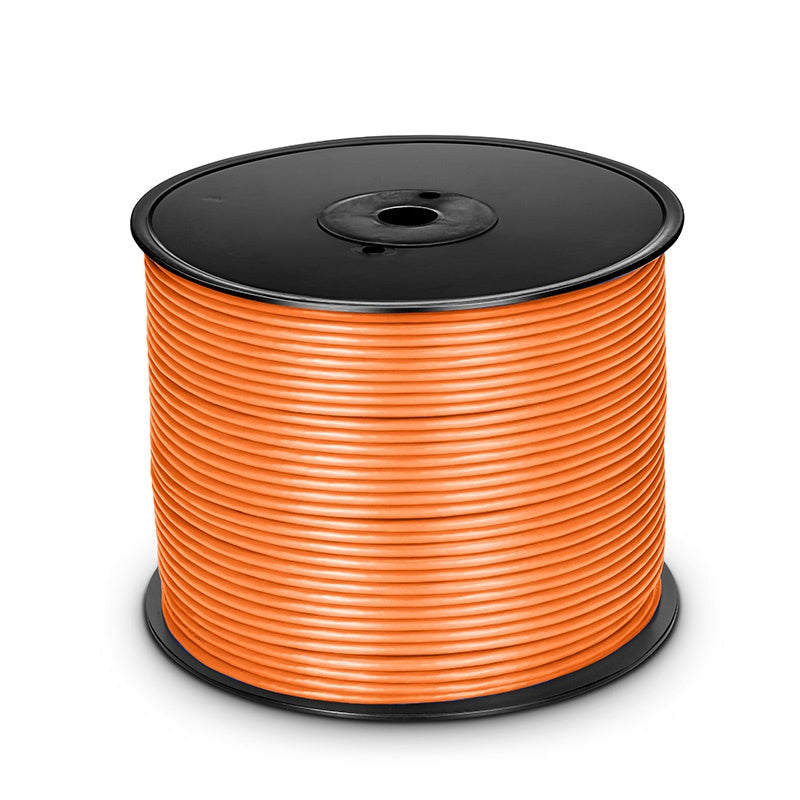

Cat7 Bulk Datakabel, CU 7080 4P 1000m Orange
SKU: DW-BC-006 | MPN: 18291100DK | EAN: 40393910040791
Unit price excl. VAT
Sale
Sold out
Regular price
€1.483,50 EUR
Regular price
Sale price
€1.483,50 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler Cat7 Bulk Datakabel, CU 7080 4P
Electrically and mechanically high-performance Cat.7 data cable that exceeds the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1 and EN 50288-4-1.
Excellent shielding performance thanks to individually shielded pairs and an overall copper braid.
Fully compatible with all common connection components in accordance with EN 50173 and ISO/IEC 11801.
Specifications
General Information
BrandDatwyler
Manufacturer Part Number18291100DK
Cable Category (TIA/US)Cat7
Warranty1 year
Cable Construction
Construction4x2 PiMF + overall braid
Conductor MaterialBare copper
ShieldingS/FTP
Pair Count4
AWG23 AWG
Jacket MaterialFRNC/LSZH
Jacket ColorOrange
Cable Diameter7.0 mm
Min Bend Radius (Permanent)30.0 mm
Min Bend Radius (Installation)60.0 mm
Crush Resistance1000 N
Cable Weight50.9 kg/km
Performance
Bandwidth1000 MHz
Data Rate10 Gbps
Impedance100 Ω
PoE Standard802.3bt (Type 4, 90 W)
PoE Wattage100 W
NVP81%
Electrical Specifications
Loop Resistance140 Ω/km
Mutual Capacitance42 pF/m
Environment & Compliance
Installation EnvironmentIndoor
Operating Temperature-20 to 60 °C
Installation Temperature0 to 50 °C
CPR EuroclassDca
Smoke Density StandardIEC 61034-1/-2
Halogen Free StandardIEC 60754-1/-2
Flame Propagation StandardIEC 60332-1-2
Certifications
Meets strict international safety and quality standards.
