Datwyler
FO DCS 3U/7HP BO sliding modules, 6× MTP PC Type A, OM4
SKU: DW-FEC-064 | EAN: 37926982
Unit price excl. VAT
Sale
Sold out
Regular price
€38,00 EUR
Regular price
Sale price
€38,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

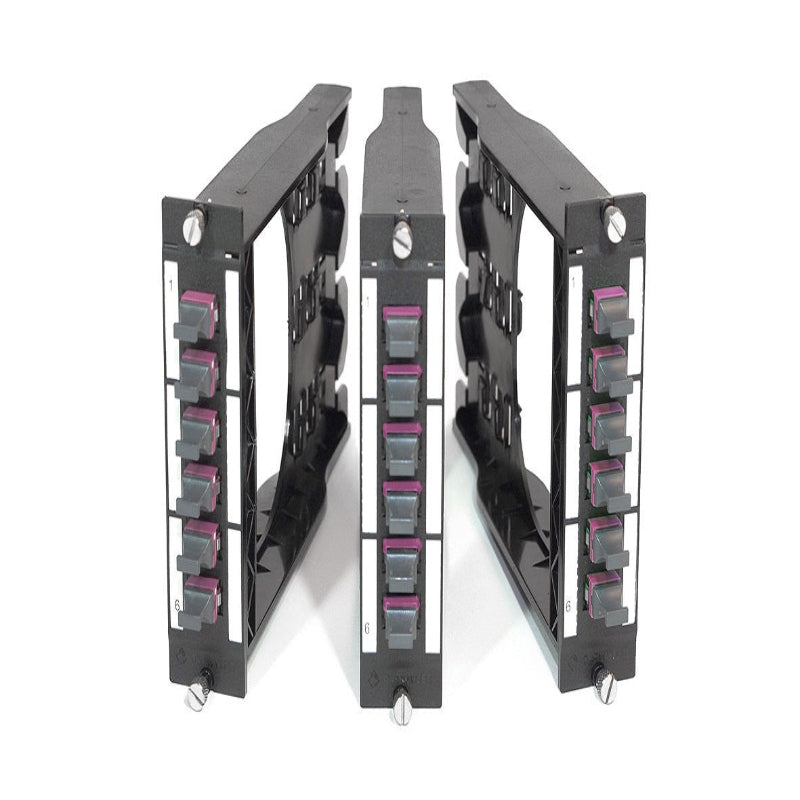

About Datwyler FO DCS 3U/7HP BO sliding modules, 6× MTP PC Type A, OM4
Open housing made of polycarbonate (PC) with a 3U / 7HP front panel also made of polycarbonate (black). The bend radius limiter at the rear and the integrated clips ensure easy and secure handling of the pre-terminated individual cables.
The front panel is equipped with 6 MTP adapters and includes two integrated labeling strips on both sides of the MTP ports for custom identification. The module is secured using two captive knurled screws.
SPECIFICATIONS:
|
| System | FO-DCS |
| Type | MTP breakout slide-in module |
| Material | Polycarbonate (PC), black front panel |
| Capacity | 6 MTP ports (72 fibers) |
| Maximum density | 864 fibers per 3U (with MTP12) |
| Dimensions | 3U / 7HP (129 × 35 × 184 mm) |
| Front adapters | 6 × MTP (Violet, Type A) |
| Application | 40/100 GbE, Datacenters |
| Mounting | Knurled screws |
| Cable management | Bend radius limiter |
| Protection | Dust cap (no laser protection) |
| Features | Integrated labeling strips |
|
Download: |
Datasheet |
Specifications
General Information
BrandDatwyler
Product SeriesHD-DCS 6xMPO, OM4 BO Module
Product TypeSliding Module
Warranty1 year
Connector & Interface
Connector AMTP
Connectors Side A6
Polish APC
PolarityMethod A
Performance
Fiber ModeMultimode
Fiber TypeOM4
Cable Count72
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
Reviews
No reviews yet.
