Datwyler
FO-DCS 3U/7HP BO sliding modules, 6x MTP/PC (type A), OS2
SKU: DW-FEC-065 | EAN: 37861446
Unit price excl. VAT
Sale
Sold out
Regular price
€38,00 EUR
Regular price
Sale price
€38,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler FO-DCS 3U/7HP BO sliding modules, 6x MTP/PC (type A), OS2

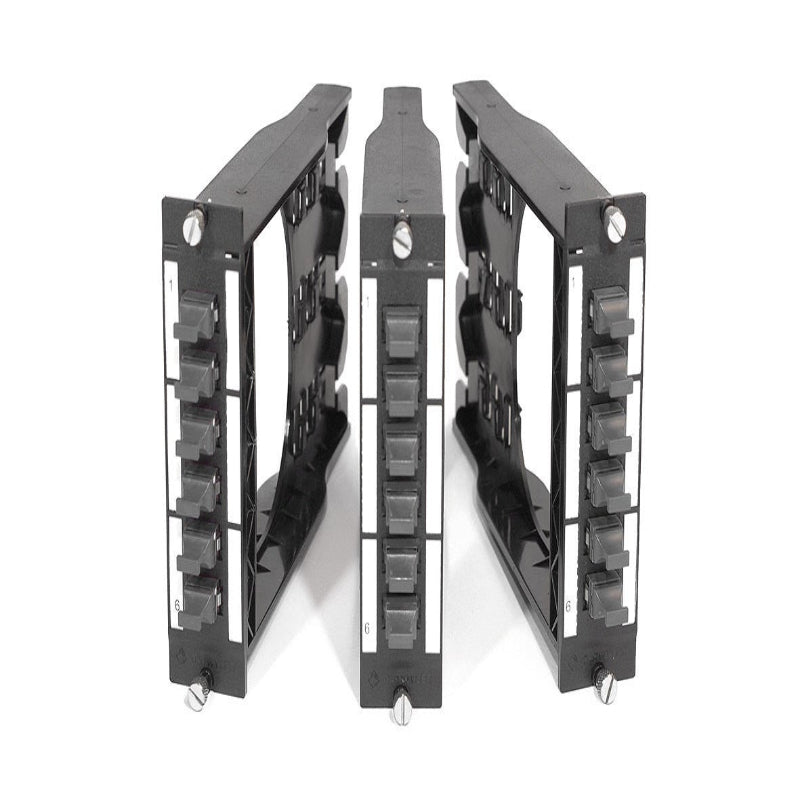

Open housing made of polycarbonate (PC) with a 3U / 7HP front panel in black polycarbonate. The bend radius limiter on the rear side and the integrated clips ensure easy and secure handling of the pre terminated individual cables.
The front panel is equipped with 6 MTP adapters and includes two integrated labeling strips on both sides of the MTP ports for custom identification. The module is secured using two captive knurled screws.
SPECIFICATIONS:
|
| System | FO-DCS |
| Fully equipped | Yes |
| Acceptance capacity | 6 MTP ports (72 fibers) |
| Outer dimensions | 3U, 129 mm x 35 mm x 184 mm |
| Front adapter | 6 × MTP, black |
| Front adapter material | Polymeric |
| Dust protection (front) | Yes |
| Laser protection (front) | None |
| Dust / laser protection (front) | Dust cap |
|
Download: |
Datasheet |
Specifications
General Information
BrandDatwyler
Product SeriesHD-DCS 6x MPO, OS2 BO Module
Product TypeSliding Module
Warranty1 year
Connector & Interface
Connector AMTP
Connectors Side A6
Polish APC
PolarityMethod A
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Cable Count72
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
