Datwyler
FO DCS 3U/7HP BO sliding modules, 6× LC Duplex PC, OS2
SKU: DW-FEC-067 | EAN: 37337158
Unit price excl. VAT
Sale
Sold out
Regular price
€55,00 EUR
Regular price
Sale price
€55,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

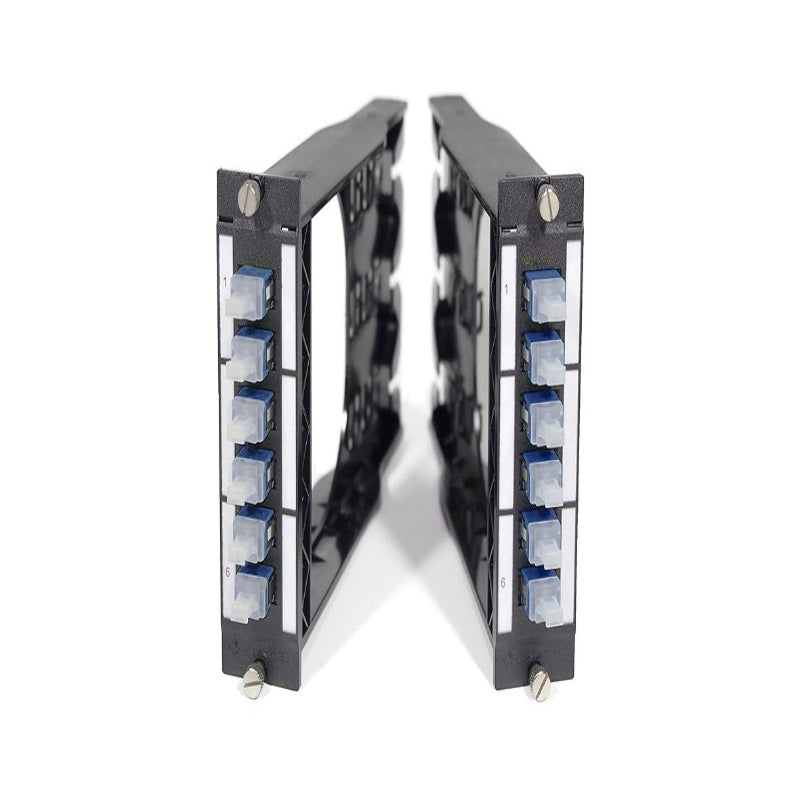

About Datwyler FO DCS 3U/7HP BO sliding modules, 6× LC Duplex PC, OS2
Open housing made of polycarbonate (PC) with a 3U / 7HP front panel in black polycarbonate. The bend radius limiter on the rear side and the integrated clips ensure easy and secure handling of the pre terminated individual cables. The front panel is equipped with 6 LCD adapters and includes two integrated labeling strips on both sides of the LCD ports for custom identification. The module is secured using two captive knurled screws.
SPECIFICATIONS:
|
| System | FO-DCS |
| Fully equipped | Yes |
| Acceptance capacity | 6 duplex ports (12 fibers) |
| Outer dimensions | 3U, 129 mm x 35 mm x 182 mm |
| Front adapter | 6 x LCD, blue |
| Front adapter material | Polymeric |
| Front dust protection | Yes |
| Front laser protection | None |
| Front dust / laser protection | Dust cap |
| Front sleeve material | Zirconia (ZrO2) |
| Download: | Datasheet |
Specifications
General Information
BrandDatwyler
Product SeriesHD-DCS 6x LCD/PC, OS2 BO Module
Product TypeSliding Module
Warranty1 year
Connector & Interface
Connector ALC Duplex
Connectors Side A6
Polish APC
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Cable Count12
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
