FO DCS 3U/7HP MTP sliding module, 1× MTP to 6× LC Duplex, OM4
SKU: DW-FEC-072 | EAN: 36911174
Unit price excl. VAT
Sale
Sold out
Regular price
€180,00 EUR
Regular price
Sale price
€180,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler FO DCS 3U/7HP MTP sliding module, 1× MTP to 6× LC Duplex, OM4

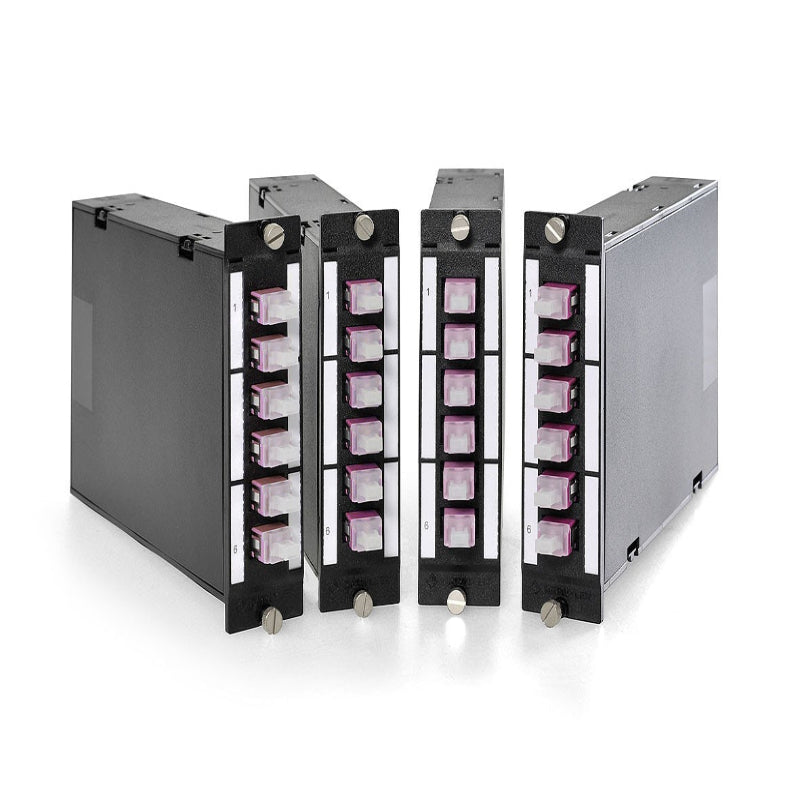

At the rear side these FO-DCS slide-in modules feature an MTP connection which is routed to the front connections (6 × LC duplex) using an internal breakout module and an integrated fiber management system. The black PC front panels include labeling strips on both sides of the LCD ports for custom identification. The module is secured using two captive knurled screws.
SPECIFICATIONS:
|
| System | FO-DCS |
| Fully equipped | Yes |
| Capacity | 6 duplex ports (12 fibers) |
| Dimensions | 3U, 129 mm × 35 mm × 180 mm |
| Fiber color code | IEC 60304 |
| Front adapter | 6 × LCD, violet |
| Front adapter material | Polymeric |
| Front dust protection | Yes |
| Front laser protection | None |
| Front dust / laser protection | Dust cap |
| Front sleeve material | Zirconia (ZrO2) |
| Front connections | 12 × LC/PC 0° |
| Front ferrule material | Zirconia (ZrO2) |
| Rear adapter | 1 × MTP, black, Type A (key up/key down) |
| Rear adapter material | Polythermide |
| Rear adapter type | Type A (key up/key down) |
| Rear dust protection | Yes |
| Rear laser protection | None |
| Rear dust / laser protection | Dust cap |
| Rear connections | 1 × MTP12 female Elite PC 0° |
| Rear ferrule material | Polyphenylene sulfide resin |
| Download: | Datasheet |
Specifications
General Information
BrandDatwyler
Product SeriesHD-DCS MTP module, 1x MTP naar 6x LCD/PC, OM4
Product TypeSliding Module
Warranty1 year
Connector & Interface
Connector ALC Duplex
Connector BMTP
Connectors Side A6
Connectors Side B1
Polish APC
Performance
Fiber ModeMultimode
Fiber TypeOM4
Cable Count12
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
