Datwyler

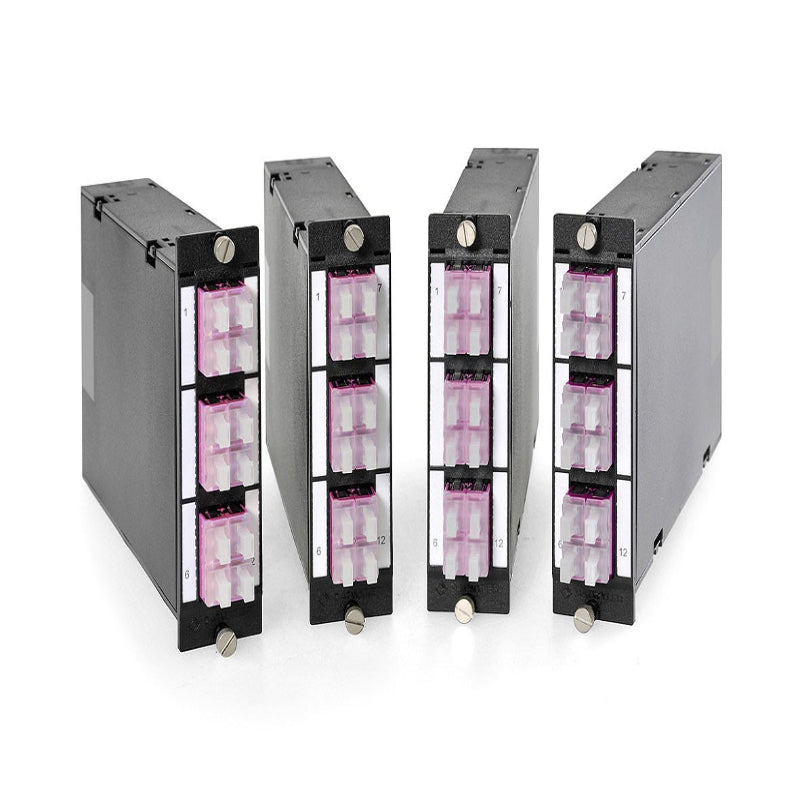

FO DCS 3U/7HP MTP sliding module, 2× MTP to 6× LC Quad, OM4
SKU: DW-FEC-075 | EAN: 36223046
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler FO DCS 3U/7HP MTP sliding module, 2× MTP to 6× LC Quad, OM4
Housing made of polycarbonate (PC) with press fit sealed side panels and a front plate in polycarbonate (black) or aluminium (1U / 7HP). At the rear these FO-DCS slide in modules feature two MTP connections which are routed to the front connections (6 × LC Quad) using internal breakout modules and an integrated fiber management system. The black PC front panels include labeling strips on both sides of the LCD ports for custom identification. The module is secured using two captive knurled screws.
SPECIFICATIONS:
|
| System | FO-DCS |
| Fully equipped | Yes |
| Capacity | 6 quad ports (24 fibers) |
| Dimensions | 3U, 129 mm × 35 mm × 180 mm |
| Fiber color code | IEC 60304 |
| Front adapter | 6 × LCQ, violet |
| Front adapter material | Polymeric |
| Front dust protection | Yes |
| Front laser protection | None |
| Front dust / laser protection | Dust cap |
| Front sleeve material | Zirconia (ZrO2) |
| Front connections | 24 × LC/PC 0° |
| Front ferrule material | Zirconia (ZrO2) |
| Rear adapter | 2 × MTP, black, Type A (key up/key down) |
| Rear adapter material | Polythermide |
| Rear adapter type | Type A (key up/key down) |
| Rear dust protection | Yes |
| Rear laser protection | None |
| Rear dust / laser protection | Dust cap |
| Rear connections | 2 × MTP12 female Elite PC 0° |
| Rear ferrule material | Polyphenylene sulfide resin |
| Download: | Datasheet |
