Datwyler

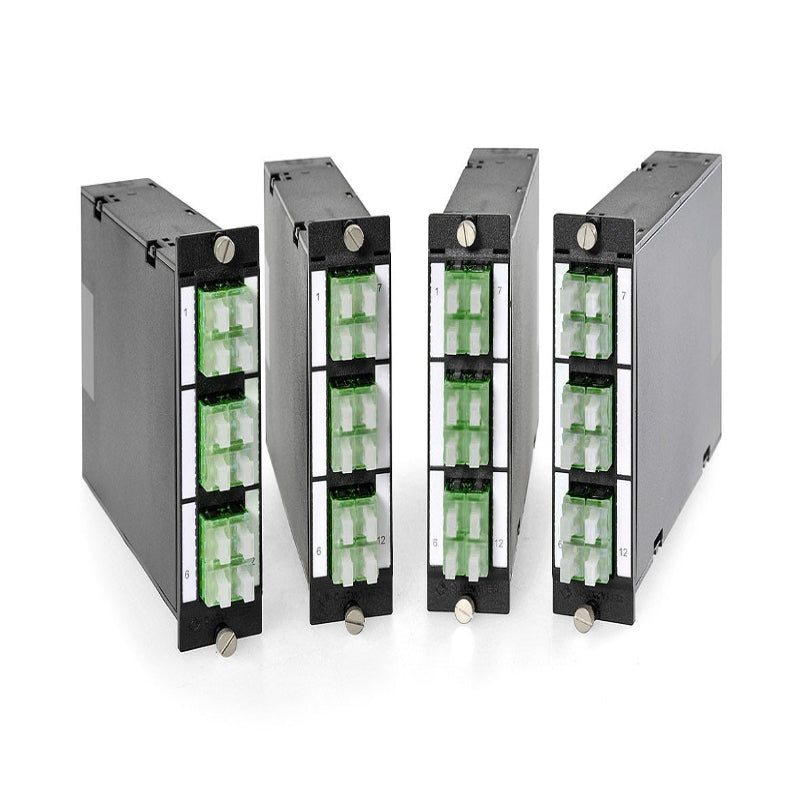

FO DCS 3U/7HP MTP sliding module, 2× MTP to 6× LC Quad APC, OS2
SKU: DW-FEC-077 | EAN: 36157510
Unit price excl. VAT
Sale
Sold out
Regular price
€580,00 EUR
Regular price
Sale price
€580,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler FO DCS 3U/7HP MTP sliding module, 2× MTP to 6× LC Quad APC, OS2
Polycarbonate (PC) housing with press fit cover (sealed). At the rear these HD-DCS modules feature two MTPD (duplex) connections which are routed to the front connections (4 × 6 LCD) using internal breakout modules. The front adapters include integrated automatic transparent dust shutters.
SPECIFICATIONS:
|
| System | FO-DCS |
| Housing material | Polycarbonate (PC) with side panels |
| Front plate | Black polycarbonate |
| Fiber color code | IEC 60304 |
| Front adapter | 6 × LCQ/APC, green |
| Front adapter material | Polymeric |
| Front dust protection | Yes |
| Front laser protection | None |
| Front dust / laser protection | Dust cap |
| Front sleeve material | Zirconia (ZrO2) |
| Front connections | 24 × LC/APC 8° |
| Front ferrule material | Zirconia (ZrO2) |
| Rear adapter | 2 × MTP, green, Type A (key up/key down) |
| Rear adapter material | Polythermide |
| Rear adapter type | Type A (key up/key down) |
| Rear dust protection | Yes |
| Rear laser protection | None |
| Rear dust / laser protection | Dust cap |
| Rear connections | 2 × MTP12 female Elite APC 8° |
| Rear ferrule material | Polyphenylene sulfide resin |
| Download: | Datasheet |
Specifications
General Information
BrandDatwyler
Product SeriesHD-DCS MTP module, 2x MTP-D naar 24x LCD/APC, OS2
Product TypeSliding Module
Warranty1 year
Connector & Interface
Connector ALC Quad
Connector BMTP
Connectors Side A6
Connectors Side B2
Polish AAPC
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Cable Count24
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
