Datwyler
HD-DCS modular panels, 19"/1U (4x12/24-port)
SKU: DW-FEC-088 | EAN: 33765446
Unit price excl. VAT
Sale
Sold out
Regular price
€170,00 EUR
Regular price
Sale price
€170,00 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler HD-DCS modular panels, 19"/1U (4x12/24-port)

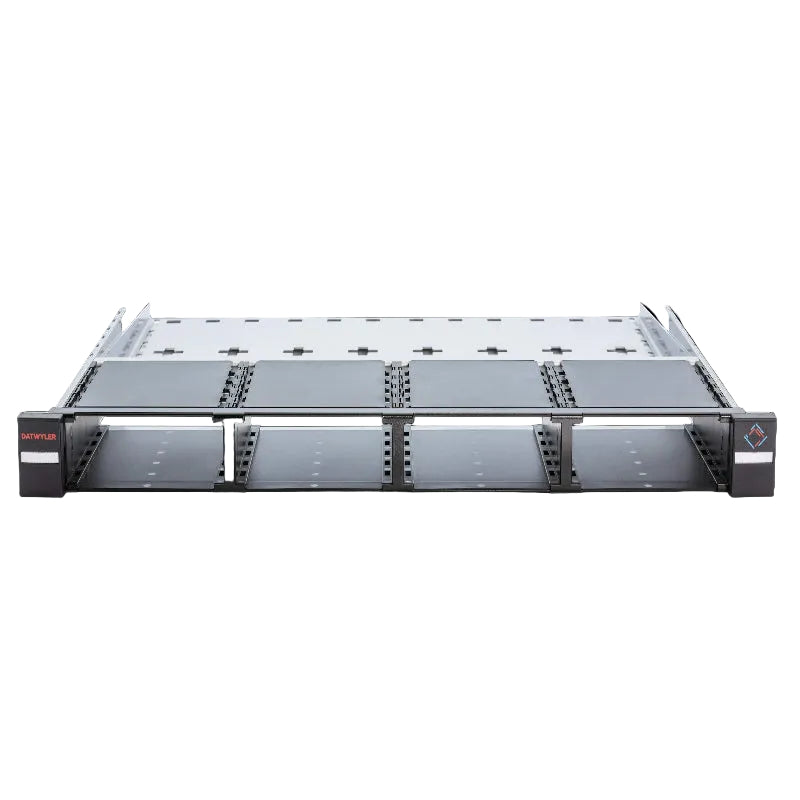

Robust stainless steel housing with a depth adjustable cable support plate and front mounted 19 inch / 1U mounting brackets. Pre assembled with four slots designed to accept HD-DCS plug in modules from the front or rear. Each slot accommodates three plug in modules with 6 ports or one plug in module with 12 or 24 ports. This design enables flexible and scalable port densities ranging from 48 to 96 ports (LCD and MPO/MTP®).
SPECIFICATIONS:
|
| Outer dimensions | 1U (19 inch rack mounting) |
| Module capacity (option 1) | 12 plug in modules with 6 LCD MPO ports |
| Module capacity (option 2) | 4 plug in modules with 12 LCD MPO ports |
| Module capacity (option 3) | 4 plug in modules with 24 LCD MPO ports |
| Maximum port density | 96 LCD and/or MPO ports per U |
| Maximum fiber density (LCD) | 192 fibers per U |
| Maximum fiber density (MPO12) | 1152 fibers per U |
| Platform type | Modular scalable high density platform |
| Panel features | Integrated depth adjustable cable support plate |
| Included accessories | 2 cover plates with label strips 19 inch mounting hardware |
| Optional accessories | Strain relief clamps cable mounting clamps |
| Download: | Data Sheet |
Specifications
General Information
BrandDatwyler
Product TypeModular Panel
Warranty1 year
Connector & Interface
Connector Type4x12/24-port
Environment & Compliance
Operating Temperature-20 °C to +70 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
