Datwyler
Duplex patchkabel LCD/PC - LCD/PC G50/125 OM4, Duplex Fig. 0
SKU: DW-FPM-352 | EAN: 01473094
Unit price excl. VAT
Sale
Sold out
Regular price
€18,10 EUR
Regular price
Sale price
€18,10 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

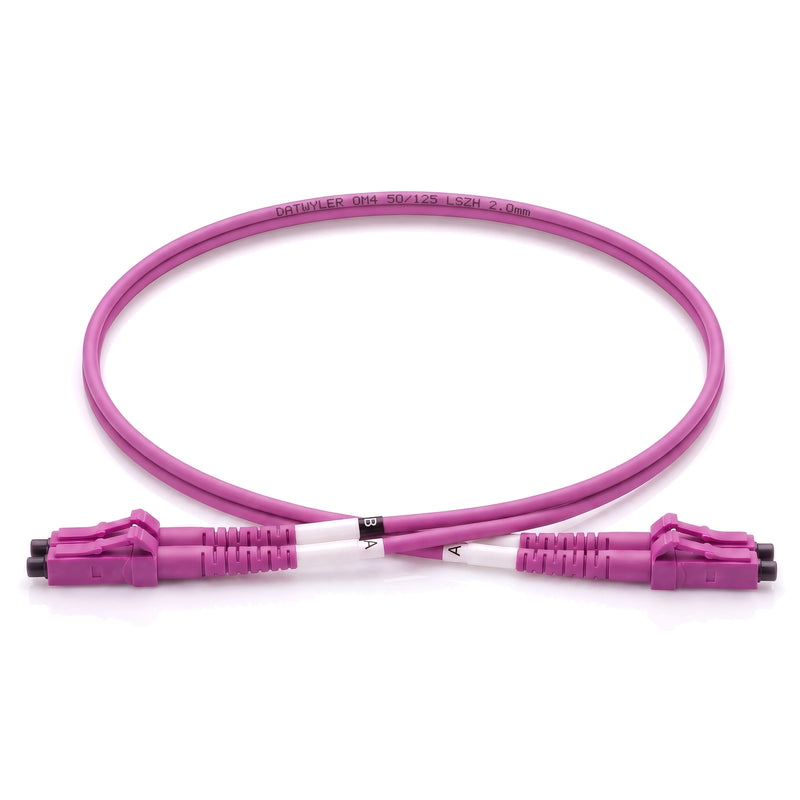

About Datwyler Duplex patchkabel LCD/PC - LCD/PC G50/125 OM4, Duplex Fig. 0
Datwyler offers a comprehensive range of ready-made fiber optic connections.
SPECIFICATIONS:
|
| Reproducibility of IL | Maximum of ± 0.1 dB |
| Connector lifespan | 1,000 connections |
| Fiber type | G50/125 OM4 |
| Ferrule material | Zirconia |
| Connector type side A | LCD/PC |
| Insertion loss IL maximum connector A | 0.25 dB |
| Insertion loss IL average connector A | 0.15 dB |
| Return loss RL minimum connector A | 30 dB |
| Return loss RL average connector A | 35 dB |
| Quality IEC61755, connector A | (better than) Bm2m |
| Standard connector A | IEC 61754-20 |
| Connector type side B | LCD/PC |
| Insertion loss IL maximum connector B | 0.25 dB |
| Insertion loss IL average connector B | 0.15 dB |
| Return loss RL minimum connector B | 30 dB |
| Return loss RL average connector B | 35 dB |
| Quality IEC61755, connector B | (better than) Bm2m |
| Standard connector B | IEC 61754-20 |
| Cable | Duplex Fig. 0 |
| Cable construction | I-V(ZN)HH |
| Outer jacket | LSZH |
| Jacket color | Heather violet |
|
Download: |
Datasheet |
Specifications
General Information
BrandDatwyler
Product TypeFiber Patch Cord Multimode
Warranty1 year
Cable Construction
Cable TypeFiber Patch Cord
Pair Count2
Jacket MaterialLSZH
Jacket ColorAqua
Cable Diameter2.0 mm
Connector & Interface
Connector TypeLCD/PC to LCD/PC
Connector ALC
Connector BLC
Polish APC
Polish BPC
Boot TypeStandard
Performance
Fiber ModeMultimode
Fiber TypeOM4
Fiber CountDuplex
Insertion Loss A · Max≤0.3 dB
Return Loss A · Min≥20 dB
Operating Wavelength850nm, 1300nm
Environment & Compliance
Operating Temperature-20 °C to +70 °C
Storage Temperature-40 °C to +80 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
