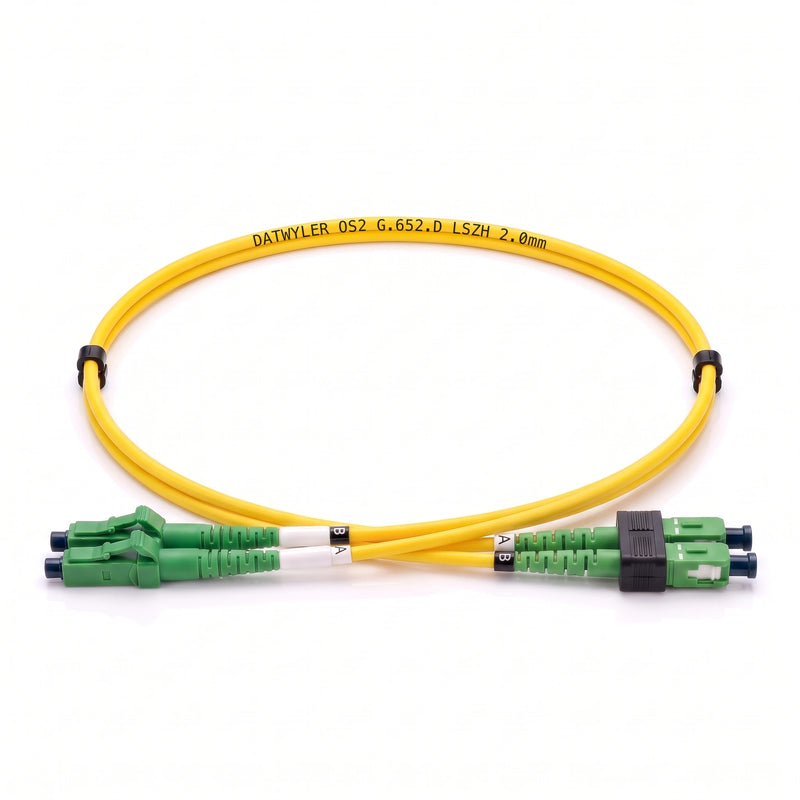

Duplex patchkabel LCD/APC - SCD/APC, E9/125 G.652.D BLO, Duplex Fig. 0
SKU: DW-FPS-319 | EAN: 03144262
Unit price excl. VAT
Sale
Sold out
Regular price
€18,10 EUR
Regular price
Sale price
€18,10 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Datwyler Duplex patchkabel LCD/APC - SCD/APC, E9/125 G.652.D BLO, Duplex Fig. 0
Datwyler offers a wide range of ready to use fiber optic connections.
SPECIFICATIONS:
|
| IL reproducibility | Maximum ± 0.1 dB |
| Connection lifetime | 1000 connections |
| Fiber type | E9/125 G.652.D BLO |
| Ferrule material | Zirconia |
| Connector type side A | LC-D/APC |
| Insertion loss IL maximum connector A | 0.25 dB |
| Insertion loss IL average connector A | 0.12 dB |
| Return loss RL minimum connector A | 65 dB |
| Return loss RL average connector A | 70 dB |
| Quality IEC61755, connector A | (better than) B1 |
| Connector standard A | IEC 61754-20 |
| Connector type side B | SC-D/APC |
| Insertion loss IL maximum connector B | 0.25 dB |
| Insertion loss IL average connector B | 0.12 dB |
| Return loss RL minimum connector B | 65 dB |
| Return loss RL average connector B | 70 dB |
| Quality IEC61755, connector B | (better than) B1 |
| Connector standard B | IEC 61754-4 |
| Cable | Duplex Fig. 0 |
| Cable construction | I-V(ZN)HH (5.0x3.0mm) |
| Outer jacket | LSZH |
| Jacket color | Yellow |
| Download: | Datasheet |
Specifications
General Information
BrandDatwyler
Product TypeFiber Patch Cord Singlemode
Warranty1 year
Cable Construction
Cable TypeFiber Patch Cord
Pair Count2
Jacket MaterialLSZH
Jacket ColorYellow
Cable Diameter2.0 mm
Connector & Interface
Connector TypeLCD/APC to SCD/APC
Connector ALC
Connector BSC
Polish AAPC
Polish BAPC
Boot TypeStandard
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Fiber GradeG.652.D
Fiber CountDuplex
Insertion Loss A · Max≤0.3 dB
Return Loss A · Min≥60 dB
Operating Wavelength1310nm, 1550nm
Environment & Compliance
Operating Temperature-20 °C to +70 °C
Storage Temperature-40 °C to +80 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
