US Conec

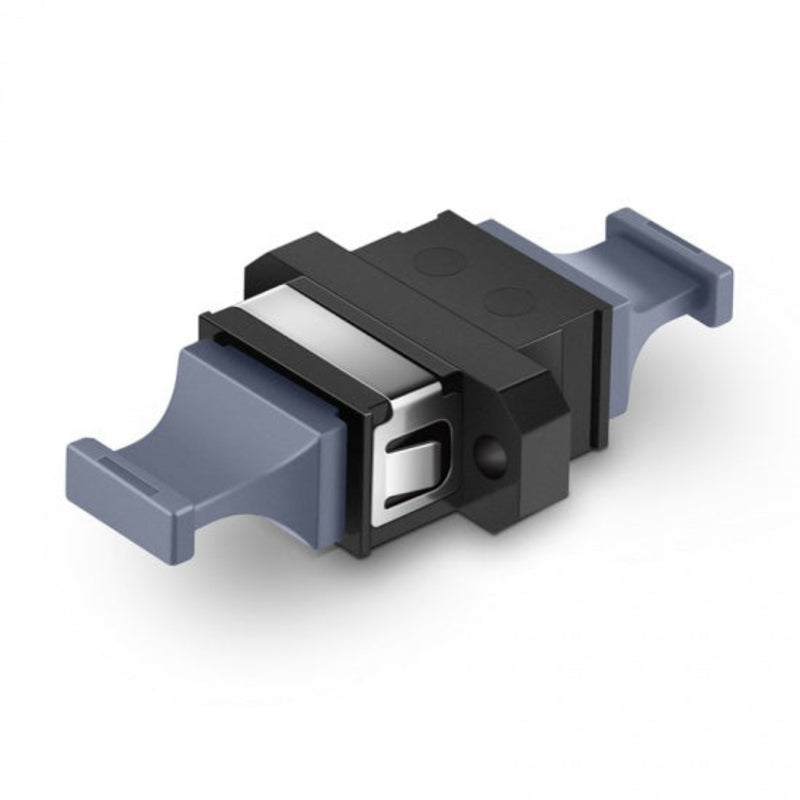

US Conec MTP®-16 Black Fiber Optic Adapter/Coupler with Flange, Key Up to Down
SKU: TP-FEC-1084 | EAN: 03274054
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About US Conec US Conec MTP®-16 Black Fiber Optic Adapter/Coupler with Flange, Key Up to Down
This grey MTP/MPO adapter is designed for connecting fiber optic links in high density network environments. The adapter is available in both key up to key up and key up to key down configurations, enabling a stable connection between two cables or between a cable and active equipment.
Suitable for MTP/MPO connectors with fiber counts ranging from 4 to 72, this adapter is widely used in fiber trunk systems, patch solutions and modular cassettes. Thanks to precise alignment and a reliable construction, the product meets industry specifications and is ideal for applications in parallel optical transmission.
SPECIFICATIONS:
|
| Connector type | US Conec MTP |
| Keyway configuration | Opposed |
| Number of ports | Single (Simplex) |
| Form factor (Footprint) | SC Simplex |
| Insertion loss (IL) | ≤ 0.35 dB |
| Durability | 1000 mating cycles |
| Flammability rating | UL 94V-0 |
| Operating temperature | -25 °C to +70 °C |
Specifications
General Information
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
