US Conec

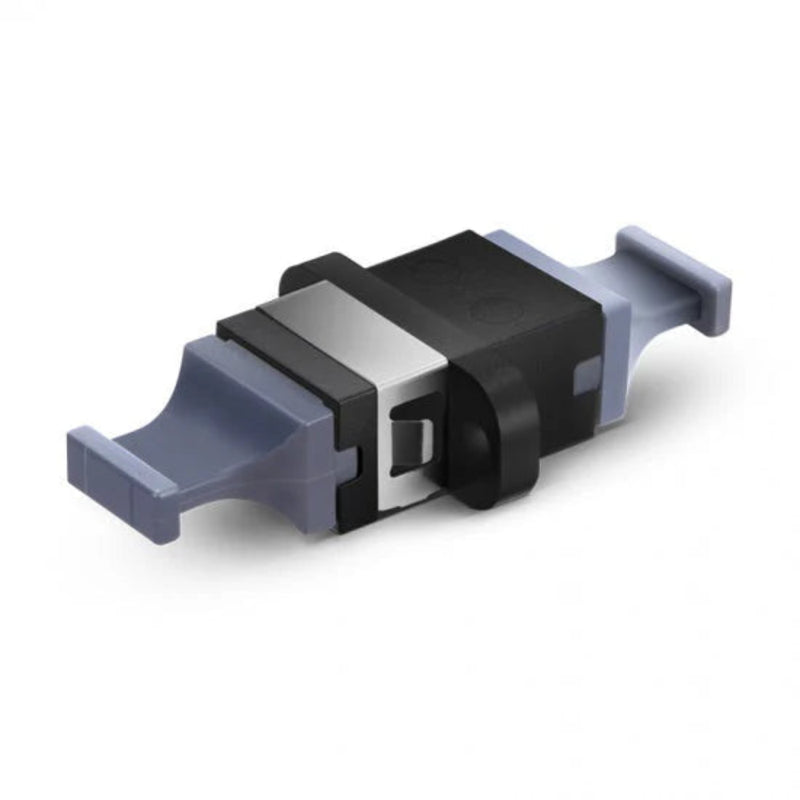

US Conec MPO-8/12/24 Black Fiber Optic Adapter/Coupler with Flange, Key Up to Down
SKU: TP-FEC-1085 | EAN: 00357702
Unit price excl. VAT
Sale
Sold out
Regular price
€17,19 EUR
Regular price
Sale price
€17,19 EUR
Unit price
per
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About US Conec US Conec MPO-8/12/24 Black Fiber Optic Adapter/Coupler with Flange, Key Up to Down
The MTP/MPO adapter with an SC footprint is a high quality fiber optic coupler designed to accurately connect two MPO or MTP connectors.
This specific model uses components from US Conec, ensuring superior mechanical stability and a very low insertion loss of up to 0.35 dB.
SPECIFICATIONS:
|
| Connector type | US Conec MPO |
| Number of ports | Single |
| Form factor (Footprint) | SC Simplex |
| Insertion loss (IL) | ≤ 0.35 dB |
| Durability | 1000 mating cycles |
| Flammability rating | UL 94V-0 |
| Operating temperature | -25 °C to +70 °C |
Specifications
General Information
BrandUS Conec
Product SeriesMTP®/MPO -Fiber Adapters/Couplers
Product TypeMTP/MPO Adapter
Warranty1 year
Connector & Interface
MTP/MPO StandardKey up to Key down
Connector AMPO
Connector BMPO
Mating Cycles≥ 1000
Adapter ColorBlack
Performance
Insertion Loss A · Max≤0.35 dB
Cable CountF 8
Form FactorSC Footprint
Environment & Compliance
Operating Temperature-25 °C to +70 °C
RoHS CompliantYes
Certifications
Meets strict international safety and quality standards.
