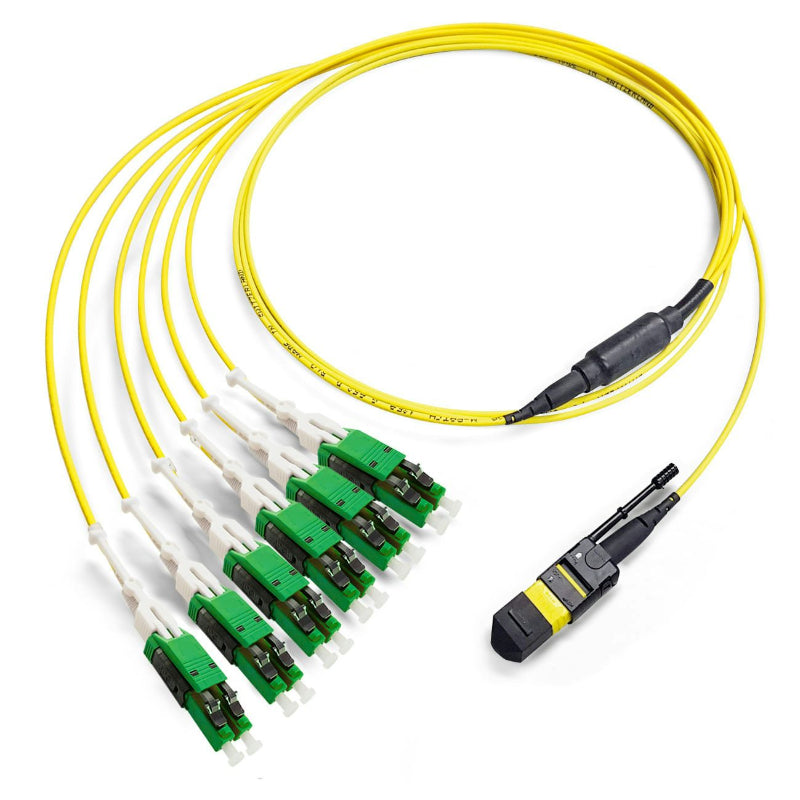

Thin and highly flexible fanout fiber optic cable (round cable, Ø 2.0 mm) with 12 fibers. The halogen free flame retardant LS0H outer jacket ensures a low fire load.
OS2 versions are available with a standard length of 2.5 m. Other lengths are available on request. Standard connectivity methods are Type A or Type C.
Both ends of the cable are labeled with self adhesive identification labels. The breakout split is implemented with a slim housing for a compact and clean transition.
The fanned out individual cables (Ø 2.0 mm) are equipped with LCD Uniboot (LCDU) connectors and numbered from 1 to 6. The fanout cables can be supplied with equal lengths or staggered lengths.
Specifications
General Information
BrandDatwyler
Manufacturer Part Number47380200ZY
Product SeriesDCS Datacenter Solutions
Product TypeFanout
Warranty1 year
Cable Construction
Jacket MaterialLSZH
Jacket ColorYellow
Cable Diameter2.0 mm
Connector & Interface
Connector TypeMTP to 6x LC Duplex
Connector GenderFemale
PolishAPC to APC
PolarityType A
Performance
Fiber ModeSinglemode
Fiber TypeOS2
Fiber Count12
Insertion Loss Max≤0.55 dB
Return Loss Min≥65 dB
Operating Wavelength1310 nm/1550 nm
Environment & Compliance
CPR EuroclassDca
Smoke Density StandardIEC 61034-1, IEC 61034-2, EN 61034-1, EN 61034-2, VDE 0482-1034-1, VDE 0482-1034-2
Halogen Free StandardIEC 60754-1, IEC 60754-2, EN 60754-1, EN 60754-2, VDE 0482-754-1, VDE 0482-754-2
Flame Propagation StandardIEC 60332-1-2, IEC 60332-3, EN 60332-1-2, VDE 0482-332-1-2
Certifications
Meets strict international safety and quality standards.
