Datwyler
DCS fanout kabels, 1x MTP/APC-f - 4x LCDU/PC, E9/125 G.652.D BLO
SKU: DW-MTP-237 | MPN: 473770 | EAN: 65239622
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

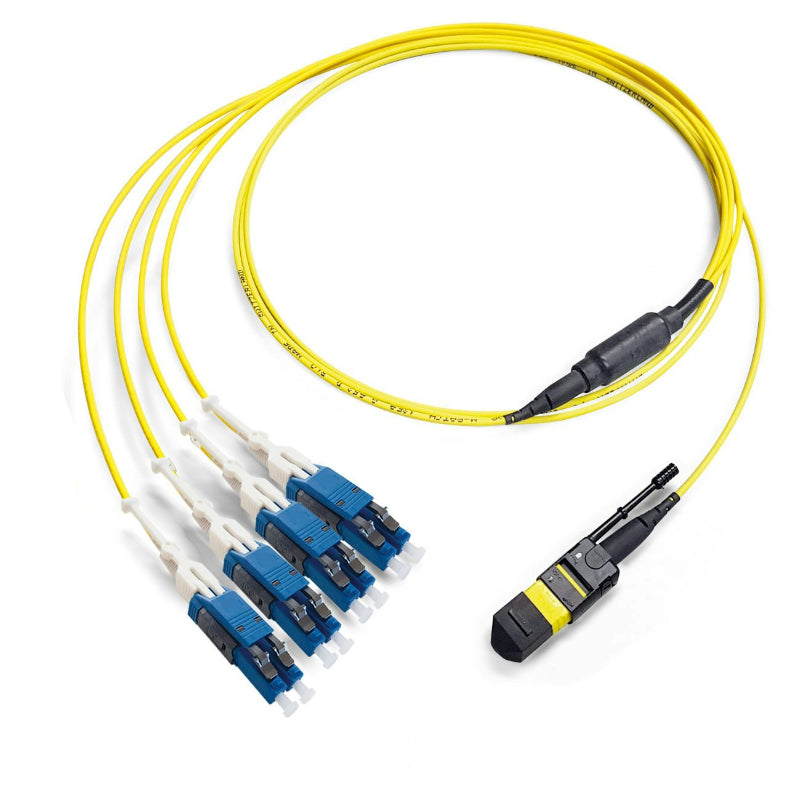

About Datwyler DCS fanout kabels, 1x MTP/APC-f - 4x LCDU/PC, E9/125 G.652.D BLO
Thin and highly flexible fanout fiber optic cable (round cable, Ø 2.0 mm) with 8 fibers. The halogen-free flame-retardant LSZH outer jacket ensures a low fire load.
The cable is available with a standard length of 2.5 m. Other lengths are available on request. Standard connectivity methods are Type A or Type C polarity.
Both ends of the cable are labeled with self-adhesive identification labels. The breakout split is implemented with a slim housing for a compact and clean transition.
The fanned-out individual cables (Ø 2.0 mm) are equipped with LC duplex Uniboot (LCDU/PC) connectors and are numbered from 1 to 4. The fanout cables can be supplied with equal or staggered lengths.
SPECIFICATIONS:
|
| Fiber type | E9/125 G.652.D BLO |
| Color code | IEC 60304 |
| Connector type side A | MTP |
| Connector gender side A | Female |
| Connector ferrule polish A | Elite APC 8° |
| Max IL connector A | 0.3 dB |
| Average IL connector A | 0.1 dB |
| Min RL connector A | 65 dB |
| Average RL connector A | 70 dB |
| Connector type side B | LCDU |
| Connector ferrule polish B | PC 0° |
| Max IL connector B | 0.25 dB |
| Average IL connector B | 0.12 dB |
| Min RL connector B | 50 dB |
| Average RL connector B | 55 dB |
| Outer jacket material | FR/LSZH |
| Jacket color | Yellow |
|
Download: |
Datasheet |
Specifications
General Information
Cable Construction
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
