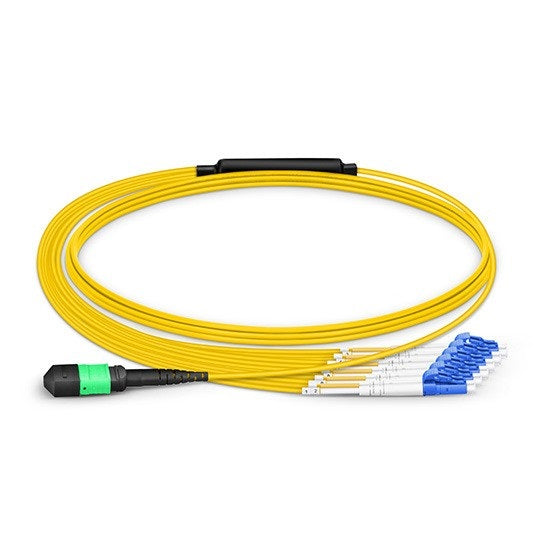

MTP-12 - 12x LC (6x duplex LC) Fiber Optic Patch Cord, Female, Elite 12F OS2 LSZH 3.0mm Jacket
SKU: TP-MTPS-1292 | MPN: TP-MTPS-1292 | EAN: 78592838
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts MTP-12 - 12x LC (6x duplex LC) Fiber Optic Patch Cord, Female, Elite 12F OS2 LSZH 3.0mm Jacket
MTP® trunks are fully factory assembled and carefully tested, and are equipped with reliable MTP®-MTP® or MTP®-LC Uniboot connectors. Thanks to ultra low loss MTP® connectors, signal loss during transmission is minimized, making them suitable for long distance links and multiple connection points.
The robust double jacket provides additional protection against damage, ensuring durability and consistent performance over longer distances. These characteristics make MTP® trunks an excellent choice for high density cabling in data centers.
SPECIFICATIONS:
|
| Insertion Loss | ≤ 0.35 dB |
| Return Loss | ≥ 60 dB (APC) |
| Measurement wavelength | 1310 nm |
| Tensile strength | 10 kgf |
| Durability | ≤ 0.2 dB (500 mating cycles) |
| Operating temperature | -20 to +70 °C |
| Bend radius | 5.0 mm – 50 mm |
| Polish angle (APC) | 8° ± 0.2° |
| Fiber height | 1000 nm – 3000 nm |
| Maximum fiber height error | 600 nm |
| Adjacent fiber height error | ± 300 nm |
| Average fiber height error | ± 300 nm |
| Central concavity | 300 nm |
Specifications
General Information
Cable Construction
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
