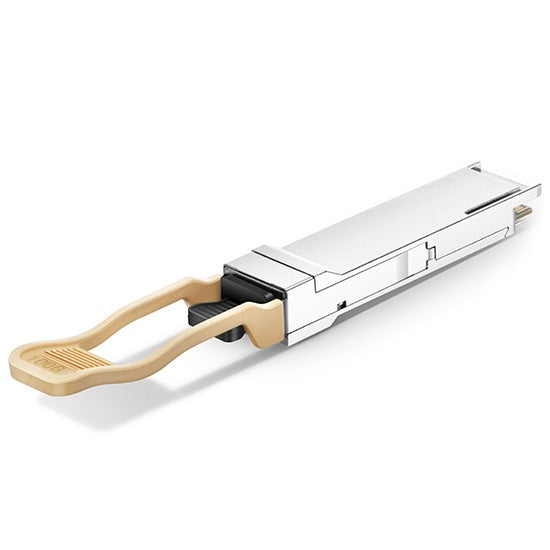

100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module - Compatible
SKU: AR-OT-613 | MPN: QSFP28-100G-SR4 | EAN: 11396166
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module - Compatible
The 100GBASE SR4 QSFP28 optical transceiver is designed for 100GBASE Ethernet applications and supports transmissions up to 70 meters over OM3 and 100 meters over OM4 multimode fiber (MMF) at a wavelength of 850 nm using an MTP/MPO 12 connector. The module can also be split into 4× 25GBASE SR SFP28 connections.
The transceiver complies with QSFP28 MSA, SFF 8636, IEEE 802.3bm and CAUI 4 standards and provides digital diagnostics via an I²C interface for real time monitoring of performance and status.
This module is ideal for a wide range of professional applications, including data centers, high performance computing networks, enterprise core networks and distribution layer environments.
SPECIFICATIONS:
|
| Form Factor | QSFP28 |
| Maximum Data Rate | 103.1Gbps |
| Optical Components | 4× VCSEL |
| Wavelength | 850nm |
| Maximum Cable Distance | 100 m @ OM4 |
| Interface | MTP/MPO 12 |
| Cable Type | MMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
