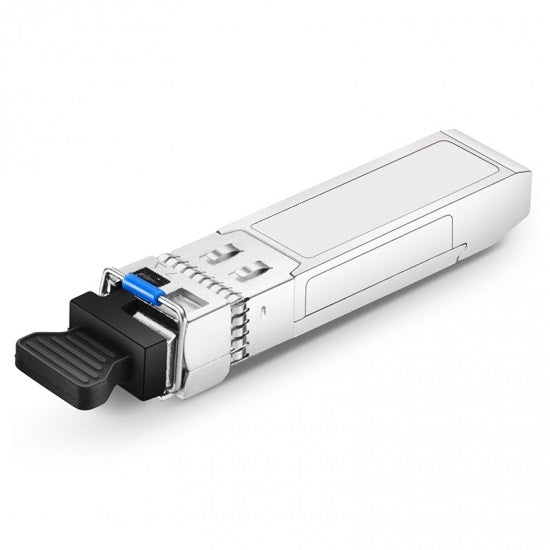

1000BASE-LX/LH SFP optical transceiver module 1310nm 10km SMF MMF with LC connector and DOM for data center Ethernet connectivity

Telco Parts

1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module - Compatible

In stock | Delivery: 1-2 business days

SKU: AR-OT-616  |  MPN: SFP-1G-LX  |  EAN: 48612678

Unit price excl. VAT
Sale Sold out
Regular price €13,00 EUR
Regular price Sale price €13,00 EUR

Need expert advice?

Our product specialists are ready to help with specifications, product selection, or installation questions.

Monday to Friday 8:30 to 17:30 CET

About Telco Parts 1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module - Compatible

This 1G SFP transceiver is designed for reliable Gigabit Ethernet connections over single mode fiber with a reach of up to 10 kilometers. The module operates at a wavelength of 1310 nm and uses a duplex LC connector. Each unit is individually tested to ensure optimal compatibility with a wide range of networking devices, including switches, routers, servers and network interface cards.

Thanks to its energy efficient design and hot plug capability, this 1000BASE LX/LH SFP module is highly suitable for applications within ISP networks, enterprise LAN and SAN environments, data centers and other professional fiber optic connections.

SPECIFICATIONS:

Form Factor SFP
Maximum Data Rate 1Gbps
Optical Components FP
Wavelength Tx 1550nm, Rx 1310nm
Maximum Cable Distance 10 km SMF
Interface LC
Cable Type SMF
Commercial Temperature Range 0 to 70°C (32 to 158°F)
DOM Support Yes

Specifications

General Information

BrandTelco Parts
Manufacturer Part NumberSFP-1G-LX
Product TypeOptical Transceiver SFP
Warranty1 year
Compatible BrandsArista,Cisco,Dell,Juniper

Connector & Interface

Connector TypeLC Duplex
MSA ComplianceSFP MSA, SFF-8472, INF-8074i
DDM/DOM SupportYes

Performance

Data Rate1.25G
Max Distance550m on MMF, 10 km on SMF
Fiber ModeMultimode and Single-mode
Fiber TypeSMF
Operating Wavelength1310nm
Form FactorSFP
Data Rate per Lane1G NRZ
Lanes1
ModulationNRZ
IEEE StandardIEEE 802.3ah-2004, IEEE 802.3z
Supported ProtocolsEthernet
Bit Error Rate1E-12
RX Sensitivity-23.0 dBm
Transmitter TypeFP
Receiver TypePIN
Extinction Ratio>9dB

Electrical Specifications

Power Consumption1.0 W
TX Power-9.5 to -3.0 dBm
Receiver Overload-3.0 dBm
Hot PluggableYes

Environment & Compliance

Operating Temperature0 °C to +70 °C
RoHS CompliantYes
EMC CompliantYes

Compatibility & Coding

Vendor CompatibilityArista
Vendor CodingMulti-vendor programmable
MTBF1000000 hours

Certifications

Meets strict international safety and quality standards.
