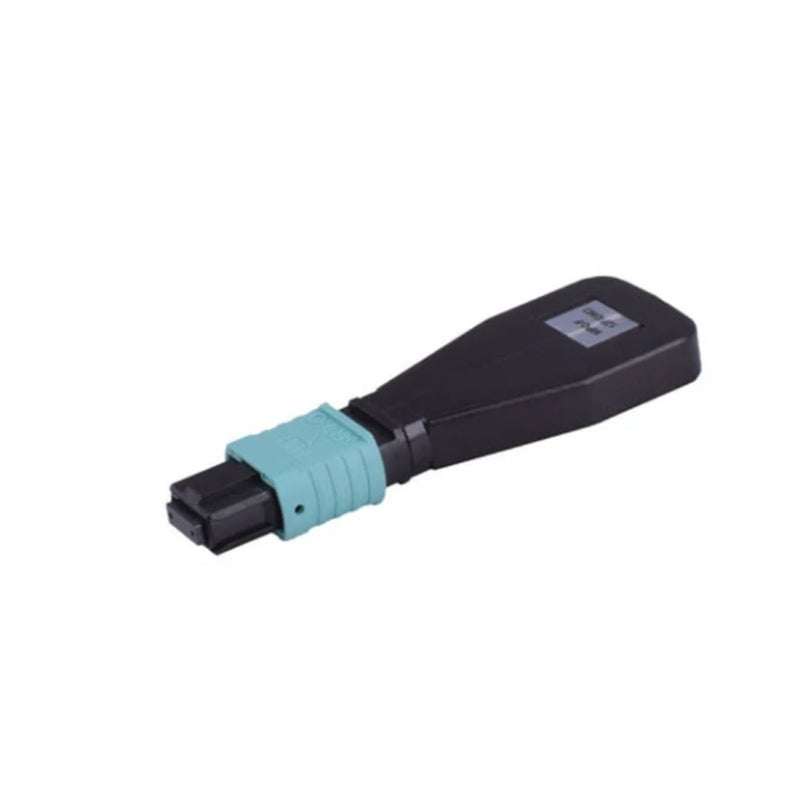

16 Fibers MTP®/MPO Female Type 1 9/125 Single-Mode Fiber Loopback Module
SKU: TP-FEC-1066 | EAN: 32896326
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 16 Fibers MTP®/MPO Female Type 1 9/125 Single-Mode Fiber Loopback Module
This MTP® loopback module is designed for testing and verifying fiber optic connections in modern high bandwidth network environments. The product is widely used for measurements in parallel optical networks, including 40G and 100G applications.
The loopback enables verification of MTP® transceivers with a female interface by internally connecting the transmit and receive paths. This allows modules such as 40G PLR4 and 100G PSM4 to be tested quickly and reliably without the need for external cabling.
By connecting directly to MTP® trunk cables or patch cables, this loopback module simplifies insertion loss measurements and other network diagnostics, saving time during installation, maintenance and troubleshooting.
SPECIFICATIONS:
|
| Housing type | MPO |
| Fiber connector | MPO female |
| Fiber type | Single mode |
| Durability | 500 cycles, IL < 0.5 dB |
| Insertion loss | SM (G657.A2) ≤ 0.7 dB |
| Housing material | PC |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Return loss | ≥ 60 dB |
Specifications
General Information
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
