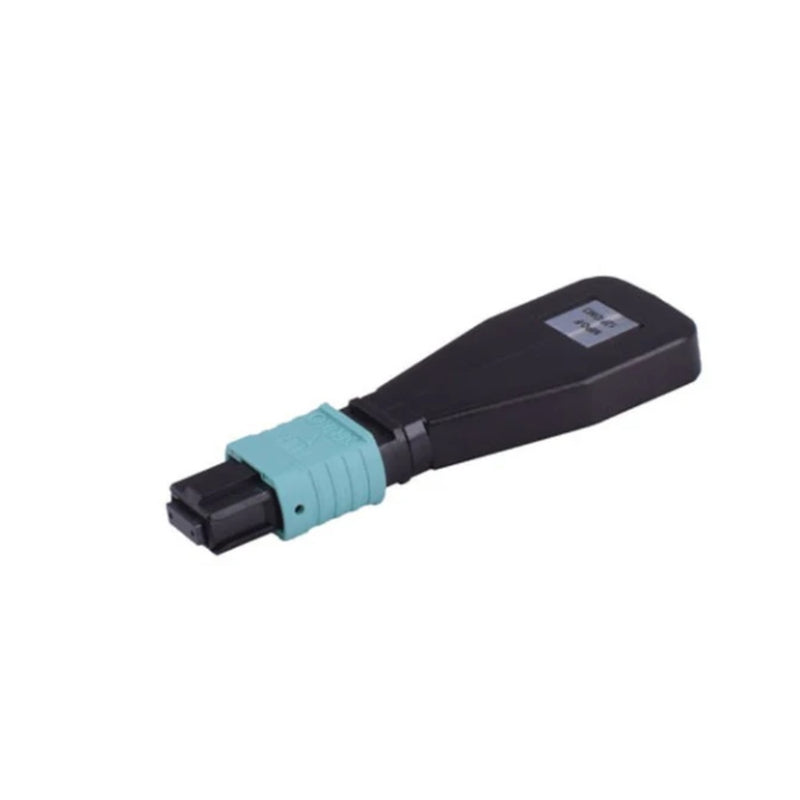

12 Fibers MTP®/MPO Female Type 1 9/125 Single-Mode Fiber Loopback Module
SKU: TP-FEC-1067 | EAN: 32765254
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 12 Fibers MTP®/MPO Female Type 1 9/125 Single-Mode Fiber Loopback Module
This MTP® loopback module is designed for testing and verifying fiber optic connections in high speed network environments. The product is commonly used in parallel optical infrastructures operating at 40G and 100G transmission speeds.
The module enables testing of MTP® transceivers by internally connecting the transmit and receive channels. This allows compatible transceivers, such as 40G PLR4 and 100G PSM4 modules, to be quickly and efficiently validated.
By directly connecting to MTP® trunk or patch cables, the loopback module supports fast execution of insertion loss measurements and other network tests, significantly simplifying installation and maintenance procedures.
SPECIFICATIONS:
|
| Fiber type | SMF |
| Fiber connector | MTP® / MPO female, APC / UPC |
| Return loss | SM ≥ 50 dB MM ≥ 25 dB |
| Insertion loss – MTP | MM ≤ 1.2 dB SM ≤ 1.5 dB |
| Insertion loss – MPO | MM ≤ 1.0 dB SM ≤ 1.0 dB |
| Durability | 500 matings, IL < 0.5 dB |
| Size | 80 mm × 10 mm |
| Operating temperature | -40 to +75 °C (-40 to +167 °F) |
| Jacket material | PEI |
Specifications
General Information
Cable Construction
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
