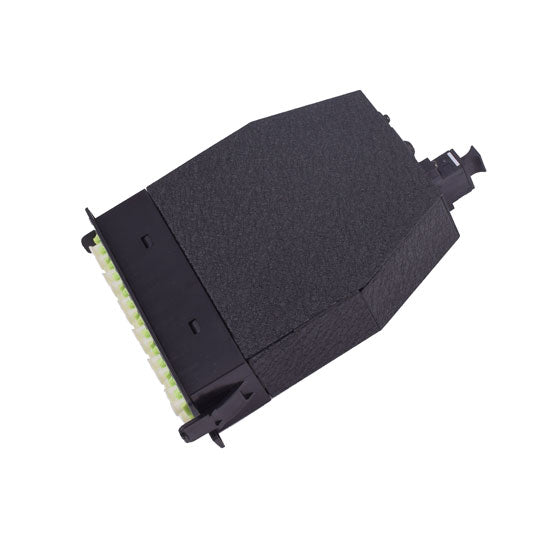

12F MPO Cassette B, with 1 piece of OS2 12-core MPO male connector (standard loss <=0.7dB) to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors, 1 piece of MPO Adaptor
SKU: TP-FEC-1074 | EAN: 19330374
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 12F MPO Cassette B, with 1 piece of OS2 12-core MPO male connector (standard loss <=0.7dB) to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors, 1 piece of MPO Adaptor
HD MPO-12 to 6 × LC Duplex Fiber Optic Cassette, OS2 9/125μm, Universal, 12 Fibers, Plug and Play
The HD (High Density) MPO fiber optic cassette is a ready to use module that is fully pre installed and tested. It features a 12 fiber MPO adapter on the rear connected to duplex LC adapters on the front, enabling simple and reliable high density fiber interconnections for a wide range of applications.
Thanks to its universal polarity design, the cassette can be used at both ends of a Method B trunk. This reduces network complexity, maintains polarity consistency and simplifies maintenance.
The MPO-12 cassette supports high density 10G deployments and provides a simple migration path to 40G, 100G and even 400G networks. Up to 48 fiber connections can be achieved within a single HD 1U rack unit, helping to save rack space and reduce infrastructure costs.
SPECIFICATIONS:
|
| Insertion loss (dB) | ≤ 0.7 |
| Return loss (dB) | ≥ 20 |
| Durability (dB) | ≤ 0.2 (500 matings) |
| Tensile strength (kgf) | 10 |
| Operating temperature (°C) | -20 to +70 |
| Measurement wavelength (nm) | 1310 |
| Bend radius (mm) | X axis min 500 / max – Y axis min 50 / max – |
| Polishing angle (°) | X axis 0–0.2 / 0–+0.2 Y axis 8–0.2 / 8–+0.2 |
| Fiber height (nm) | Min 1000 / Max 3000 |
| Maximum fiber height error (nm) | 600 |
| Adjacent fiber height error (nm) | -300 to +300 |
| Average fiber height error (nm) | -300 to +300 |
| Central concavity (nm) | 300 |
