CDOM4E2 24F OM4 MPO Cassette – 2× 12 Fiber MPO Male, MPO to LC Hydra Cables, 6 Quad Duplex LC Adapters and 2 MPO Adapters
SKU: TP-FEC-1075 | EAN: 17888582
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.

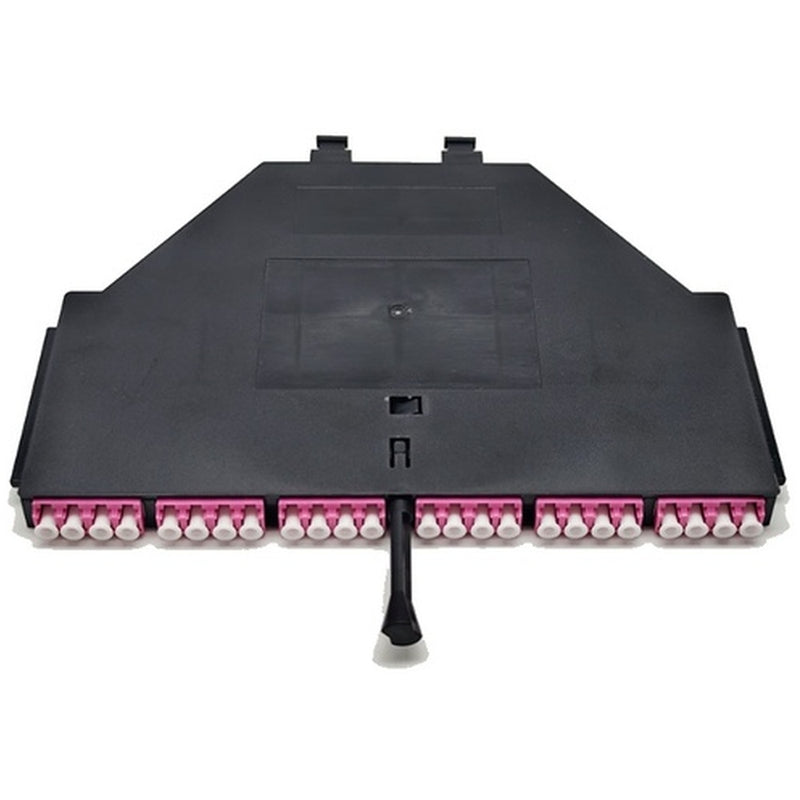

About Telco Parts CDOM4E2 24F OM4 MPO Cassette – 2× 12 Fiber MPO Male, MPO to LC Hydra Cables, 6 Quad Duplex LC Adapters and 2 MPO Adapters
The CDOM4E2 24F MPO cassette is designed for high density fiber optic applications in data centers. The cassette allows 24 fiber MPO MTP trunk connections to be converted to simplex or duplex LC connections, enabling equipment, patch panels or endpoints to be connected directly using standard patch cables.
The cassette is equipped with 2 × OM4 12 fiber MPO male connectors with low insertion loss (≤0.35 dB) and is internally terminated with MPO to LC hydra cables. The front side features 6 quad duplex LC adapters and the rear side includes 2 MPO adapters.
Thanks to its compact design and high port density, this MPO cassette is ideal for MDA, IDA and HDA environments within modern data center architectures.
Main features
- 24 fibers (24F)
- OM4 multimode
- 2 × 12 fiber MPO male connectors
- Low loss ≤0.35 dB
- MPO to LC hydra cable configuration
- 6 × quad duplex LC adapters (front)
- 2 × MPO adapters (rear)
- Manufactured from high quality engineering plastic
- Fast installation, flexible configuration and easy management
Applications
- Data center cabling
- High density MPO to LC breakout
- Direct connection to active equipment and patch panels
Connector specifications MTP / MPO connector
| Property | Singlemode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0.60 (standard) / ≤0.35 (elite) | ≤0.60 (standard) / ≤0.35 (elite) |
| Return loss (dB) | ≥60 | ≥20 |
| Durability | ≤0.2 dB (500 matings) | ≤0.2 dB (500 matings) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Parameter | X axis Min | X axis Max | Y axis Min | Y axis Max |
|---|---|---|---|---|
| Bending radius (mm) | 500 | – | 50 | – |
| Polish angle | 0–0.2 | 0–0.2 | 8–0.2 | 8–0.2 |
| Fiber height (nm) | 1000 | 3000 | – | – |
| Maximum fiber height offset (nm) | 600 | – | – | – |
| Adjacent fiber deviation (nm) | -300 | +300 | – | – |
| Average fiber height deviation (nm) | -300 | +300 | – | – |
