CCSM2 24F OS2 MPO Cassette – 2× 12 Fiber MPO Male, MPO to 12 LC Hydra Cables, 6 Quad LC Adapters and 2 MPO Adapters
SKU: TP-FEC-1077 | EAN: 15365446
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts CCSM2 24F OS2 MPO Cassette – 2× 12 Fiber MPO Male, MPO to 12 LC Hydra Cables, 6 Quad LC Adapters and 2 MPO Adapters
The CCSM2 24F MPO cassette is designed for high density fiber optic applications in data centers. The cassette enables conversion of 24 fiber MPO MTP trunk connections into simplex or duplex LC connections, allowing equipment, patch panels or endpoints to be connected directly using standard patch cables.

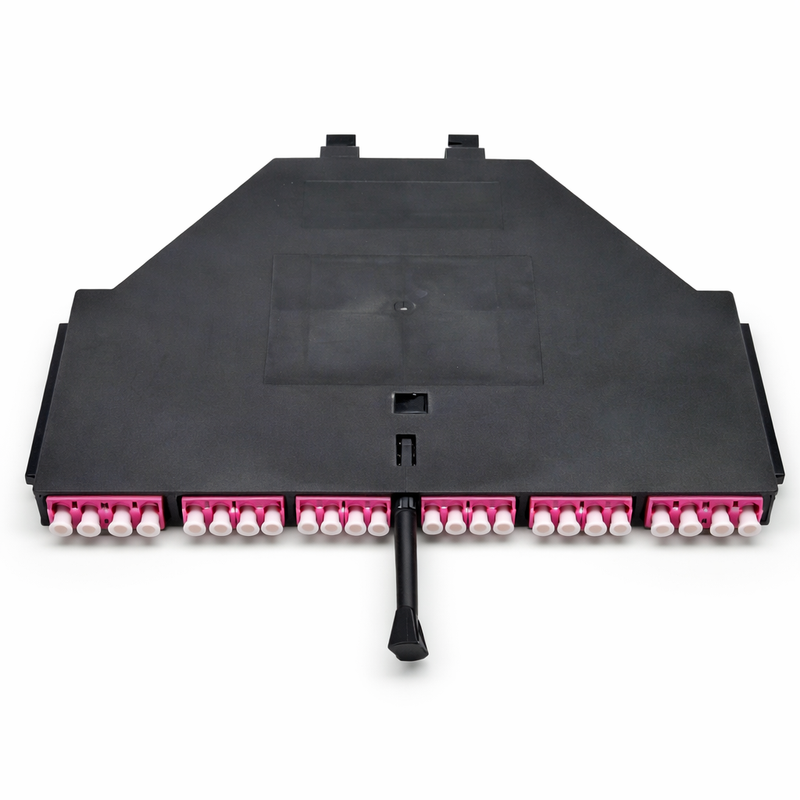

The cassette is equipped with 2 × OS2 12 fiber MPO male connectors with low insertion loss (≤0.35 dB) and is internally terminated with MPO to LC hydra cables. The front side features 6 quad duplex LC adapters and the rear side includes 2 MPO adapters.
Thanks to its compact design and high port density, this MPO cassette is ideal for MDA, IDA and HDA environments within modern data center architectures.
Main features
- 24 fibers (24F)
- OS2 singlemode
- 2 × 12 fiber MPO male connectors
- Standard loss ≤ 0.7 dB
- MPO to LC hydra cable configuration
- 6 × quad duplex LC adapters (front)
- 2 × MPO adapters (rear)
- Manufactured from high quality engineering plastic
- Fast installation, flexible configuration and easy management
Applications
- Data center cabling
- High density MPO to LC breakout
- Direct connection to active equipment and patch panels
Connector specifications MTP / MPO connector
| Property | Singlemode | Multimode |
|---|---|---|
| Insertion loss (dB) | ≤0.60 (standard) / ≤0.35 (elite) | ≤0.60 (standard) / ≤0.35 (elite) |
| Return loss (dB) | ≥60 | ≥20 |
| Durability | ≤0.2 dB (500 matings) | ≤0.2 dB (500 matings) |
| Tensile strength | 10 kgf | 10 kgf |
| Operating temperature | -20 °C to +70 °C | -20 °C to +70 °C |
| Parameter | X axis Min | X axis Max | Y axis Min | Y axis Max |
|---|---|---|---|---|
| Bending radius (mm) | 500 | – | 50 | – |
| Polish angle | 0–0.2 | 0–0.2 | 8–0.2 | 8–0.2 |
| Fiber height (nm) | 1000 | 3000 | – | – |
| Maximum fiber height offset (nm) | 600 | – | – | – |
| Adjacent fiber deviation (nm) | -300 | +300 | – | – |
| Average fiber height deviation (nm) | -300 | +300 | – | – |
Specifications
General Information
Cable Construction
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
