12F MPO Cassette B, with 1 piece of OM4 12-core MPO male connector (low loss <=0.35dB) to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors, 1 piece of MPO Adaptor
SKU: TP-FEC-663 | EAN: 93674566
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 12F MPO Cassette B, with 1 piece of OM4 12-core MPO male connector (low loss <=0.35dB) to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors, 1 piece of MPO Adaptor

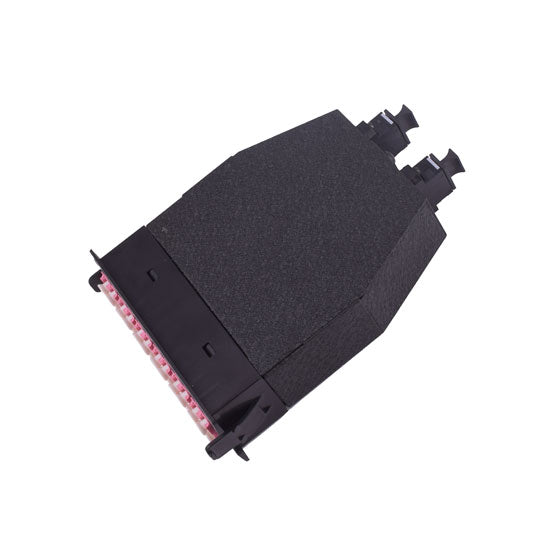

The HD (High Density) MPO fiber optic cassette is delivered fully pre installed and tested and features a 12 fiber MPO adapter on the rear connected to duplex LC adapters on the front. This enables simple and reliable connections with high density fiber optic cabling for a wide range of applications.
Thanks to its universal polarity design, the cassette can be used on both sides of a Method B trunk. This simplifies network management, maintains consistent polarity and allows faster and easier maintenance.
The MPO 12 cassette supports high density 10G deployments and provides an easy upgrade path to 40G, 100G and even 400G networks. Up to 48 fiber connections can be achieved within a single HD 1U rack unit, helping to save rack space and reduce infrastructure costs.
SPECIFICATIONS:
|
| Insertion loss (dB) | ≤ 0.7 / MM Elite ≤ 0.35 |
| Return loss (dB) | ≥ 20 |
| Durability (dB) | ≤ 0.2 (500 matings) |
| Tensile strength (kgf) | 10 |
| Operating temperature (°C) | -20 to +70 |
| Measurement wavelength (nm) | 850 |
| Bend radius (mm) | X axis: min 500 / max – Y axis: min 50 / max – |
| Polishing angle (°) | X axis: 0–0.2 / 0–+0.2 Y axis: 8–0.2 / 8–+0.2 |
| Fiber height (nm) | Min 1000 / Max 3000 |
| Maximum fiber height error (nm) | 600 |
| Adjacent fiber height error (nm) | -300 to +300 |
| Average fiber height error (nm) | -300 to +300 |
| Central concave (nm) | 300 |
