24F MPO Cassette B, with 1 piece of OS2 24-core MPO male connector (standard loss <=0.7dB) to 24 LC connector Hydra Cable, 12 pieces of duplex LC adaptor, 1 piece of 24 fiber MPO Adaptor
SKU: TP-FEC-664 | EAN: 81091654
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 24F MPO Cassette B, with 1 piece of OS2 24-core MPO male connector (standard loss <=0.7dB) to 24 LC connector Hydra Cable, 12 pieces of duplex LC adaptor, 1 piece of 24 fiber MPO Adaptor

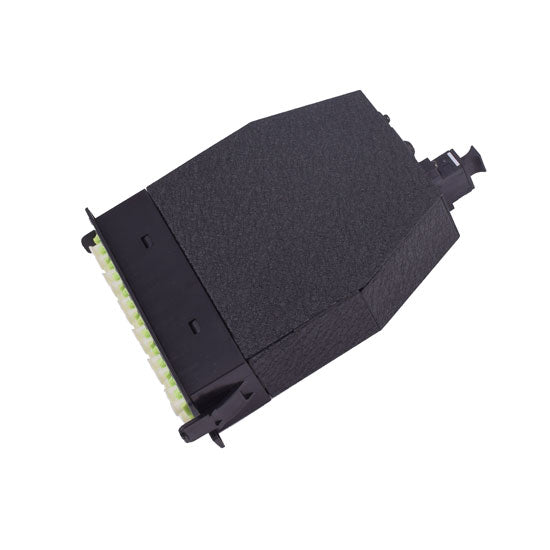

The HD (High Density) MPO fiber optic cassette is delivered fully pre installed and tested, featuring 1 × 24 fiber MPO adapter on the rear connected to duplex LC adapters on the front. This design enables simple and reliable high density fiber interconnection for a wide range of applications.
Thanks to its universal polarity design, the cassette can be used at both ends of a Method B trunk. This simplifies network management, maintains polarity consistency and makes maintenance easier.
The MPO 12 cassette supports high density 10G deployments and provides an easy migration path to 40G, 100G and even 400G networks. Up to 96 fiber connections can be achieved within a single HD 1U rack unit, saving valuable rack space and reducing infrastructure costs.
SPECIFICATIONS:
|
| Insertion loss | (dB) SM Standard / SM Elite / MM Standard / MM Elite |
| Return loss | (dB) ≥60 / ≥20 |
| Durability | (dB) ≤0.2 (500 matings) |
| Tensile strength | (kgf) 10 |
| Operating temperature | (°C) -20 to +70 |
| Measurement wavelength | (nm) 1310 / 850 |
| Bend radius | (mm) X axis min 500 / max – Y axis min 50 / max – |
| Polishing angle | 0–0.2 / 0–+0.2 / 8–0.2 / 8–+0.2 |
| Fiber height | (nm) 1000 – 3000 |
| Maximum fiber height error | (nm) 600 |
| Adjacent fiber height error | (nm) -300 to +300 |
| Average fiber height error | (nm) -300 to +300 |
| Central concave | (nm) 300 |
