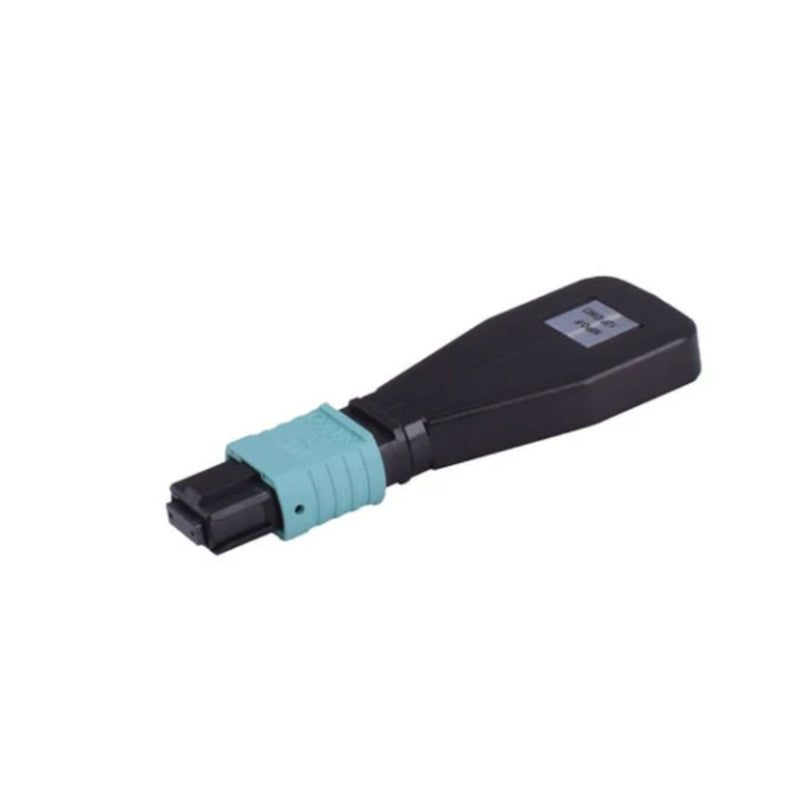

12 Fibers MTP®/MPO Female Type 1 50/125 Multi-Mode Fiber Loopback Module
SKU: TP-FEC-665 | EAN: 88456774
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 12 Fibers MTP®/MPO Female Type 1 50/125 Multi-Mode Fiber Loopback Module
This MTP® loopback module is designed for testing and verifying fiber optic connections in modern high bandwidth network environments. It is widely used for measurements in parallel optical networks, including 40G and 100G applications.
The loopback enables verification of MTP® transceivers with a female interface by internally connecting the transmit and receive paths. This allows modules such as 40G PLR4 and 100G PSM4 to be tested quickly and reliably without the need for external cabling.
By connecting directly to MTP® trunk cables or patch cables, the loopback simplifies insertion loss measurements and other network diagnostics, saving time during installation, maintenance and troubleshooting.
SPECIFICATIONS:
|
| Fiber type | MMF |
| Fiber connector | MTP® / MPO female, APC / UPC |
| Return loss | SM ≥ 50 dB MM ≥ 25 dB |
| Insertion loss MTP | MM ≤ 1.2 dB SM ≤ 1.5 dB |
| Insertion loss MPO | MM ≤ 1.0 dB SM ≤ 1.0 dB |
| Durability | 500 cycles, IL < 0.5 dB |
| Dimensions | 80 mm × 10 mm |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Jacket material | PEI |
