MDC UPC to MDC UPC Uniboot Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable, for 200/400G Network Connection
SKU: TP-FP-945 | EAN: 97650758
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts MDC UPC to MDC UPC Uniboot Duplex OS2 Single Mode (LSZH) 2.0mm Fiber Optic Patch Cable, for 200/400G Network Connection

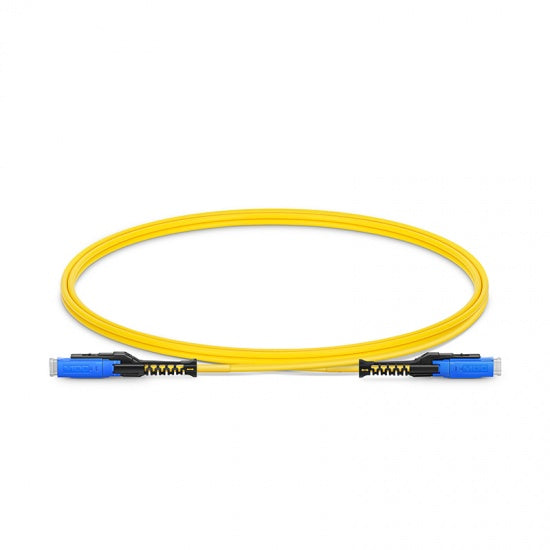

This OS2 single mode uniboot fiber optic patch cable is equipped with MDC connectors, a compact Very Small Form Factor (VSFF) duplex solution that uses proven 1.25 mm LC ferrules and supports 2.0 mm micro cables. The design is optimized for applications where maximum port density is required.
Thanks to the innovative DirectConec push pull actuator sleeve, each individual connector remains easily accessible even in environments with extremely high connection density. The reversible polarity can be quickly adjusted without tools or fiber exposure, which significantly simplifies installation and reconfiguration.
This MDC patch cable is specifically designed for breakout configurations with QSFP DD, SFP DD and OSFP transceivers and is ideal for networks that aim for higher density than traditional patch panel solutions.
SPECIFICATIONS:
|
| Connector A | MDC |
| Connector B | MDC |
| Polish type | UPC |
| Insertion loss (dB) | Maximum ≤0.30 |
| Return loss (dB) | UPC ≥55 |
| Repeatability (dB) | IL ≤0.2, RL ≤5 |
| Vibration (dB) | IL ≤0.2, RL ≤5 |
| Interchangeability (dB) | IL ≤0.2, RL ≤5 |
| Durability | ≤0.2 dB typical variation, 500 matings |
| Operating temperature (°C) | -20 ~ +70 |
| Ferrule material | Zirconia ceramic |
| Jacket material | LSZH (Low Smoke Zero Halogen) |
| Cable diameter (mm) | Ø 2.0 |
Specifications
General Information
Cable Construction
Connector & Interface
Performance
Environment & Compliance
Certifications
Meets strict international safety and quality standards.
