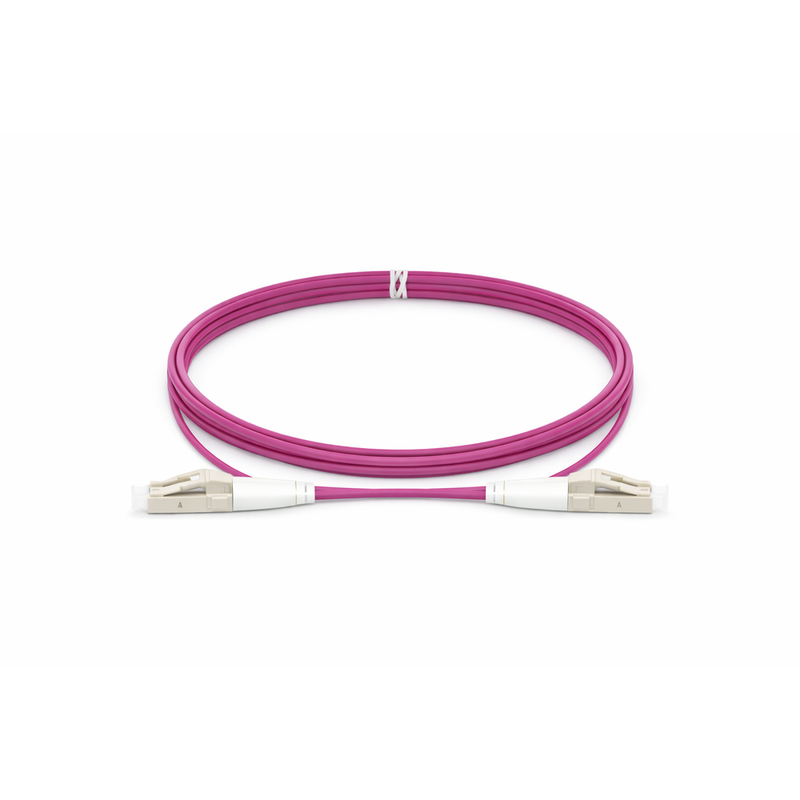

LC UPC to LC UPC Uniboot Duplex OM4 Multimode (LSZH) 2.0mm BIF Fiber Optic Patch Cable
SKU: TP-FP-955 | EAN: 96471110
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts LC UPC to LC UPC Uniboot Duplex OM4 Multimode (LSZH) 2.0mm BIF Fiber Optic Patch Cable
This OM4 fiber optic patch cable with uniboot design combines both fibers in a single flat jacket, reducing cable volume and creating a cleaner cabling structure. This makes the cable highly suitable for high density environments such as modern data centers where space saving and organized cable management are essential.
Thanks to the reversible polarity system, the fiber configuration can be quickly adjusted without tools and without exposing the optical fibers. The applied bend insensitive fiber technology BIF ensures reliable performance.
SPECIFICATIONS:
|
| Fiber type | Multimode OM4 |
| Connector A | Duplex LC Uniboot |
| Connector B | Duplex LC Uniboot |
| Polish type | UPC |
| Insertion loss dB | Maximum ≤0.3 |
| Return loss dB | ≥55 |
| Repeatability dB | IL ≤0.2 RL ≤5 |
| Vibration dB | IL ≤0.2 RL ≤5 |
| Interchangeability dB | IL ≤0.2 RL ≤5 |
| Durability | ≤0.2 dB typical change 500 matings |
| Operating temperature °C | -40 to +80 |
| Ferrule material | Zirconia ceramic |
| Jacket material | LSZH Low Smoke Zero Halogen |
| Cable diameter mm | Ø 2.0 |
