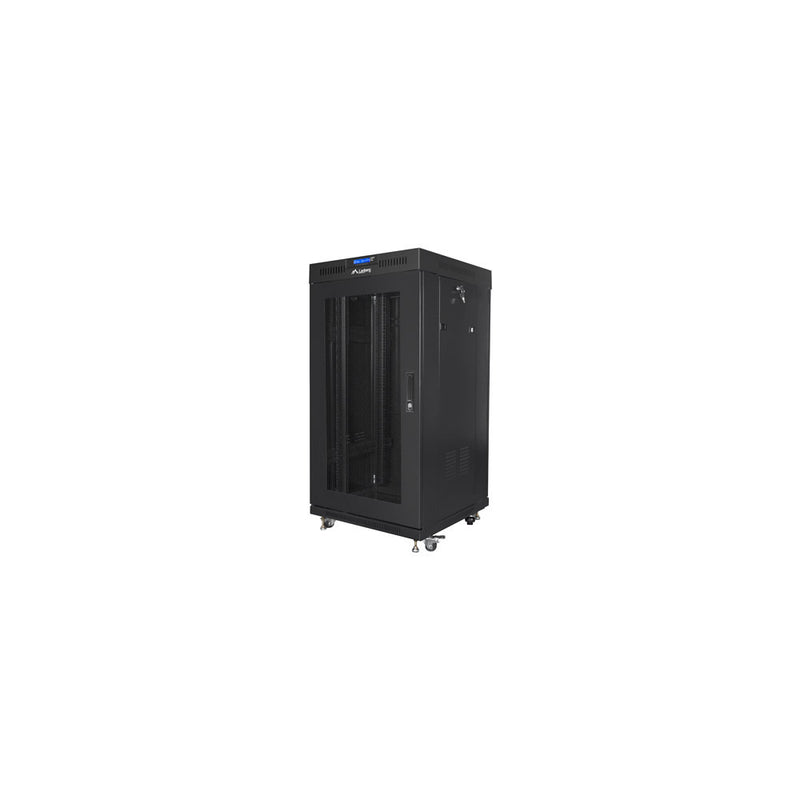

22U 19 inch floor standing server cabinet 600×600 - perforated mesh door with LCD - black
SKU: TP-RC-1341 | EAN: 91741766
Need expert advice?
Our product specialists are ready to help with specifications, product selection, or installation questions.
About Telco Parts 22U 19 inch floor standing server cabinet 600×600 - perforated mesh door with LCD - black
These floor standing server cabinets provide a well designed and professional solution for ICT environments where the secure storage and management of large amounts of server and network equipment is essential. The design makes efficient use of the available space, while the robust construction ensures durability and long term reliable operation.
The server cabinets are available in various sizes and configurations, making them easy to adapt to specific installation and capacity requirements. Thanks to high quality materials and a precise design, the cabinets provide optimal working conditions for server equipment, as well as easy access and management of the ICT infrastructure. The clean and functional design, combined with the possibility to expand with accessories and mounting materials, makes these server cabinets suitable for both large organizations and smaller businesses looking for a reliable and professional IT solution.
SPECIFICATIONS:
| Cabinet type | Floor standing |
| Rack size | 19 inch |
| Height | 22U |
| Assembly | Self assembly |
| Working depth | 480 mm |
| Front door type | Perforated |
| Rear door type | Perforated |
| Door type | Single door |
| Max. static load | 1200 kg |
| Fan positions | 2 |
| Number of vertical rails | 4 |
| Thermostat | Yes |
| LCD panel | Yes |
| Color | Black |
| RAL color | RAL9004 |
| Ingress protection rating | IP20 |
| Front door thickness | 1.2 mm |
| Rear door thickness | 1.2 mm |
| Top & bottom panel thickness | 1.5 mm |
| Side panel thickness | 1.2 mm |
| Mounting rail thickness | 2.0 mm |
| Frame thickness | 1.5 mm |
| Other parts thickness | 1.2 mm |
| Depth | 600 mm |
| Width | 600 mm |
| Height | 1132 mm |
| Weight | 71 kg |
| Standards | ANSI/EIA RS-310-D DIN 41491 PART 1 DIN 41494 PART 7 ETSI IEC297-2:1982 |
| Grounding | Front door Bottom panel Frame |
| Included accessories | Manual Grounding cable Lockable wheels Leveling feet Ventilation panel M6 mounting screws Thermostat Front door lock Side locks Rear door lock Side locks |
